The Ultimate 3D sound experience
Upgrade your viewing or gaming experience from ordinary to extraordinary. Built-in Dolby Atmos®, DTS:X™ and four upfiring speakers bounce sound up to the ceiling back down to you for an awesome, true 3D sound experience.

Real surround sound in a second
Instantly enjoy a true, cinematic 9.1 surround experience. Simply place the two detachable surround speakers behind you. No extra wires, no extra power connections so no extra hassle.

Detachable speakers that go anywhere
Built-in batteries mean audio freedom. Place the two detachable surround speakers anywhere in your room to enjoy an incredible audio experience. After up to 10 hours of playback, simply dock them to the soundbar to recharge.

Feel like you're right in the scene with 3D surround sound

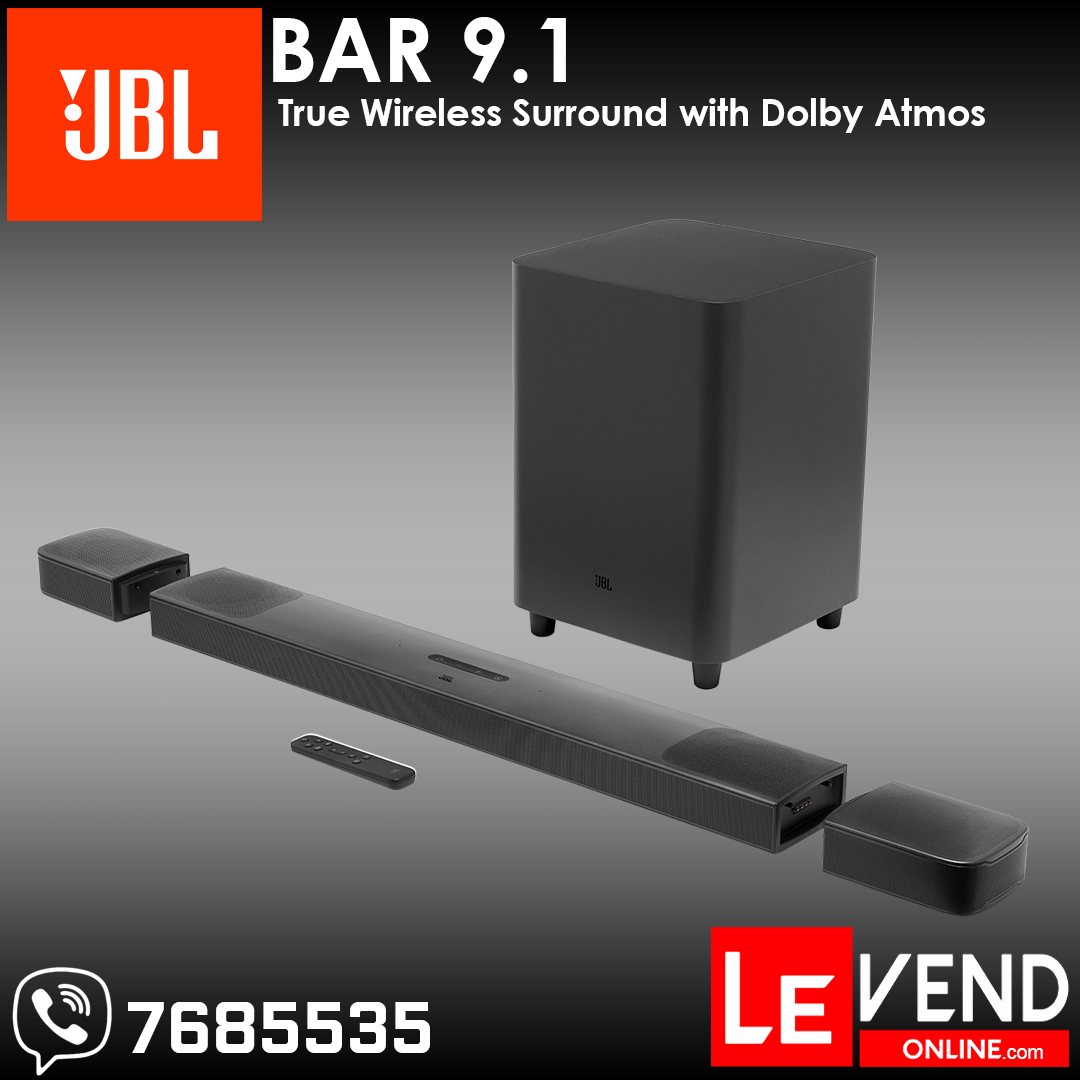

The JBL Bar 9.1 soundbar brings audio experience of a movie theater into your home with two detachable surround speakers and the added punch of Dolby Atmos® and DTS:X™ 3D sound. With 820 watts of total system power, you can enjoy every Oscar-worthy performance through powerful, crystal-clear audio. Turn up the 10’’ subwoofer for pulse-pounding bass or turn it down and relax with Chromecast and AirPlay music streaming. Immerse yourself in the latest blockbuster or re-live your favorite movie or sport scenes. The most incredible home cinema sound experience is here.

General Specifications
5.1.4 channel
Yes

Power supply
100 - 240VAC, ~ 50/60Hz

Battery charge time
3 hours

Total speaker power output (Max. @THD 1%)
820 W

Main Soundbar output power (Max. @THD 1%)
400

Surround speakers output power (Max. @THD 1%); 2 x 60W
Yes

Subwoofer output power (Max. @THD 1%); 300
Yes

Soundbar transducer
4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter

Surround transducer (per piece)
up-firing full-range driver + 0.75” (20mm) tweeter

Subwoofer transducer
10"

Operating temperature
0°C - 45°C

Standby for Soundbar (when all wireless connections are deactivated)
< 0.5 W

Networked standby (Soundbar)
< 6.0 W

Networked standby (Subwoofer)
< 2.0 W

Time to standby
<10 minutes

Audio Specifications
HDMI In
1

HDMI eARC
1

HDMI HDCP version
2.3

103dB
Yes

34Hz~20KHz
Yes

1 Optical, Bluetooth, Chromecast, AirPlay2, USB
Yes

Dimensions
Soundbar dimensions (WxHxD); 884 x 62 x 120 (mm)/ 34.8” x 2.4” x 4.7”
Yes

Detachable surround speaker, per piece
173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7”

Subwoofer dimensions (WxHxD); 305 x 440 x 305(mm) / 12.0" x 17.3" x 12.0"
Yes

Soundbar weight
3.64 kg/ 8.0 lb

Detachable surround speaker
0.72 kg x 2/ 1.6 lb x2

Subwoofer weight
11.10 kg / 24.5 lb

Control and Connection Specifications
USB port
Type A

USB rating
5 V/ 500 mA

Supported file format
MP3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate; 16 KHz - 48 KHz
Yes

MP3 bitrate
80 kbps - 320 kbps

USB Port; (USB playback is available in US version. For other versions, USB is for Service only.)
Yes

Bluetooth version
4.2

Bluetooth profile
A2DP V1.2/ AVRCP V1.5

Bluetooth frequency range; 2402MHz-2480MHz
Yes

Bluetooth Max. transmitting power
13dbm (EIRP)

Modulation Type
GFSK, π/4 DQPSK, 8DPSK

Wi-Fi network
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi frequency range
2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi Max. transmitting power
20 dBm (EIRP)

Modulation Type
DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM

5G Wi-Fi frequency range
5.15 - 5.35 GHz, 5.470-5.725 GHz, 5.725 - 5.825 GHz

5G Wi-Fi Max. transmitting power
22 dBm (EIRP)

Modulation Type
QPSK, BPSK, 16QAM, 64QAM, 256QAM

5G Wireless frequency range
5180.0 - 5240.0MHz (Except Europe), 5725.0 - 5825.0MHz

5G Max. transmitting power
13 dBm (EIRP)

Modulation Type
QPSK
