Powerful sound
JBL MultiBeam™ technology brings the ultimate cinematic experience to your home. No extra speakers or wires are needed

You got the power
With 550 Watts of system output power, experience your movies and music like never before. Immersive, powerful sound to match your viewing pleasure.

Feel the bass
Punchy, precise bass from a mighty 10 wireless subwoofer brings the action to action movies, and ensures any soundtrack sounds epic

Description
Experience panoramic surround sound

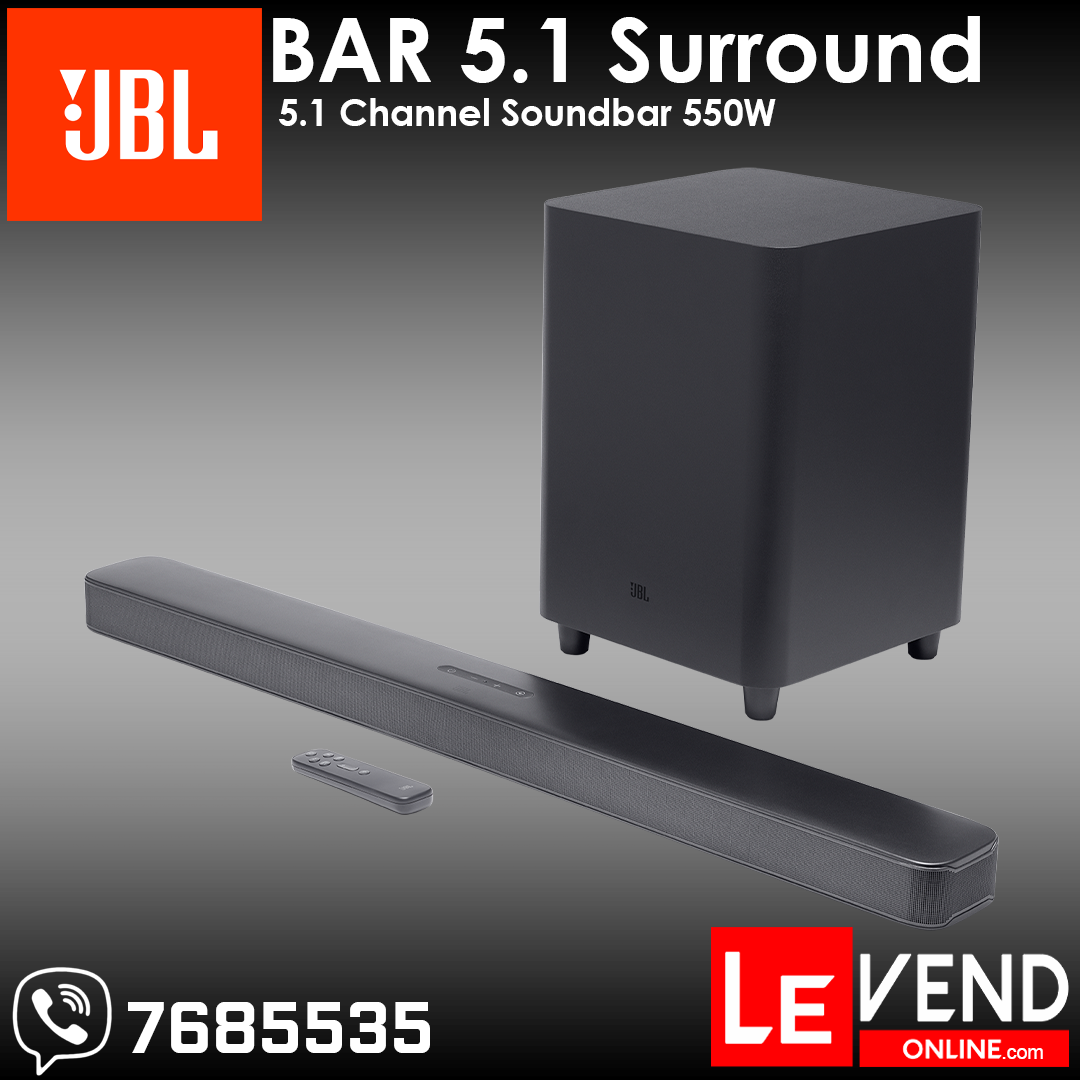

The impressive JBL Bar 5.1 Surround delivers the ultimate home cinematic experience. Bring everything you watch to life with 550 Watts of power and a 10’ subwoofer: the driving bass of an action movie, the tension of a thriller or the beauty of a nature documentary. Built-in Chromecast and Airplay 2 lets you stream and manage online content, and Bluetooth means your streamed music sounds great, too. Amazing surround sound comes from JBL MultiBeam™ technology.

General Specifications
Power supply
100 - 240V AC, ~ 50/60Hz

Soundbar output power (Max. @THD 1%)
5 x 50W

Subwoofer output power (Max. @THD 1%)
300W

standby power
<0.5W

networked standby power
<2.0W

Operating temperature
0°C - 45°C

Off Mode
N/A

Network Standby
<2.0W

Time to standby
<20minutes
* Standby
in the condition of all wireless connections of Soundbar are deactivated, if no provide any audio or video signal to the Soundbar unit, the Soundbar unit will automatically into standby mode in 10 minutes.

* Networked standby
in the condition of any wireless connection of Soundbar is activated, if no provide any audio or video signal to the Soundbar unit, the Subwoofer and Soundbar unit will automatically into networked standby mode in 10 minutes.
Any audio or video recover will bring device from standby to operation mode.


Audio Specifications
Total speaker power output (Max. @THD 1%)
550W

Max SPL
103dB

Frequency response
40Hz - 20KHz

Audio inputs
1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

MP3 Codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate
16KHz - 48 KHz

MP3 bitrate
80kbps - 320kbps

Dimensions
Soundbar transducer
5 x 4690” racetrack drivers +2 x 1.25” side-firing tweeters

Subwoofer transducer
10”

Dimensions (W x H x D)
1018 x 58 x 100mm / 40” x 2.28” x 3.94” (Soundbar); 305 x 440 x 305mm / 12” x 17.3” x 12” (Subwoofer)

Weight
2.85KG (Soundbar); 10.62Kg (Subwoofer)

Control and Connection Specifications
USB port
Type A

USB rating
5V DC, 0.5A

Supporting file format
mp3, wav

Bluetooth version
4.2

Bluetooth profile
A2DP V1.3, AVRCP V1.5

Bluetooth frequency range
2402MHz - 2480MHz

Bluetooth Max. transmitting power
<11dBm (EIRP)

Modulation Type
GFSK, π/4 DQPSK, 8DPSK

Wi-Fi network
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi frequency range
2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi Max. transmitting power
<20dBm

Modulation Type
DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM

5G Wi-Fi frequency range
5.15 - 5.35GHz, 5.725 - 5.825GHz

5G Wi-Fi Max. transmitting power
<22dBm

Modulation Type
QPSK, BPSK, 16QAM, 64QAM, 256QAM

5G Wireless frequency range
5161.35 - 5245.35MHz, 5736.35 - 5820.35MHz

5G Max. transmitting power
<9dBm (EIRP)

Modulation Type
π/4 DQPSK

Video Specifications
HDMI Video input
1

HDMI Video output (With Audio return channel)
1

HDMI HDCP version
2.2
