Bring the power
An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good.

Surround yourself with sound
JBL Surround Sound instantly brings movies, games, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers.

All about the bass
Why just listen to the bass when you can experience it? The 6.5'' wireless subwoofer delivers deep, thrilling sound.

Big Thrilling Bass

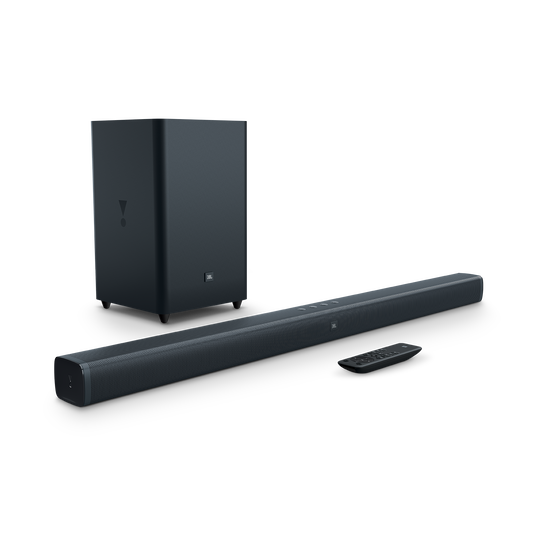

The elegant JBL BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBL Surround Sound modes. Its room filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full range drivers, two 1” tweeters, and JBL engineered 6.5” subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBL theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.

Model
Bar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)

Power supply
100 - 240V AC, ~ 50/60Hz

Total speaker power output (Max. @THD 1%)
300W

Output power (Max. @THD 1%):
Yes

2 x 50W (Soundbar); 200W (Subwoofer)
Yes

Transducer
4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)

Soundbar and Subwoofer standby power
<0.5W

Operating temperature
0°C - 45°C

HDMI Video output (With Audio return channel)
1

HDMI version
1.4

HDMI Video input
1

Frequency response
40Hz - 20KHz

Audio inputs
1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions (W x H x D):
965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar);
240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)

Weight
2.16 kg (Soundbar);
5.67 kg (Subwoofer)

Packaging dimensions (W x H x D)
1045 x 310 x 405mm

Packaging weight (Gross weight)
10.4kg

USB port
Type A

USB rating
5V DC/ 0.5A

Supporting file format
mp3, wav

MP3 Codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate
16KHz - 48 KHz

MP3 bitrate
80kbps - 320kbps

WAV sample rate
16KHz - 48 KHz

WAV bitrate
Up to 3000kbps

Bluetooth version
4.2

Bluetooth profile
A2DP V1.3, AVRCP V1.5

Bluetooth frequency range
2402MHz-2480MHz

Bluetooth Max. transmitting power
<10dBm (EIRP)

Modulation Type
GFSK, π/4 DQPSK, 8DPSK

5G Wireless frequency range
5736.35 - 5820.35MHz

5G Max. transmitting power
<9dBm (EIRP)

Modulation Type
π/4 DQPSK
