True Dolby Atmos, DTS:X, and MultiBeam Surround Sound

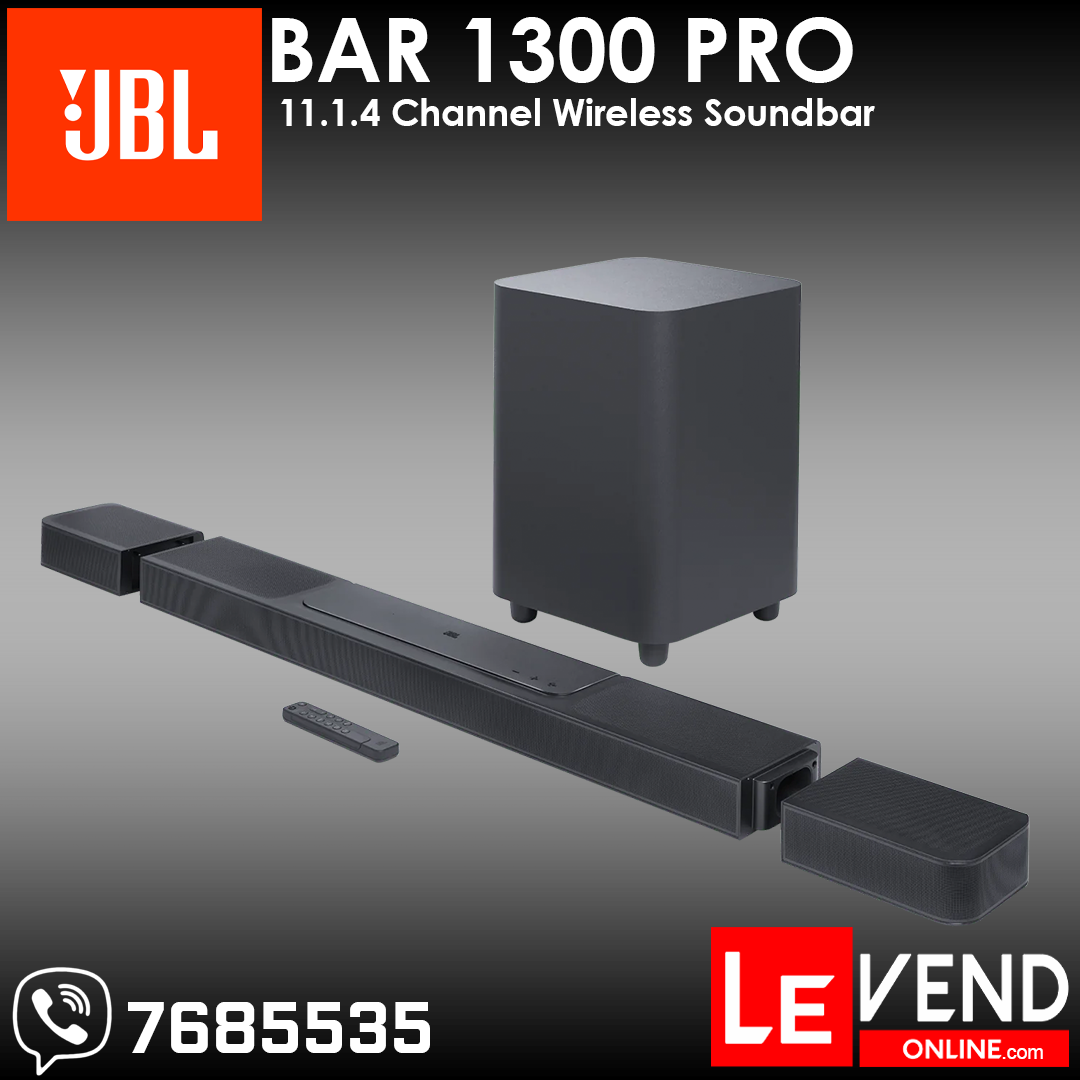

Immerse yourself in theater-quality 3D sound. With four up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1300 delivers true Dolby Atmos and DTS:X together with MultiBeam for an enhanced 3D surround sound experience.

Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

General Specifications
Sound system
11.1.4 channel

Power supply
100 - 240V AC, ~ 50/60Hz

Networked standby power
< 2.0W

Operating temperature
0°C - 45°C

Audio Specifications
Total speaker power output (Max @THD 1%)
1170W

Soundbar output power (Max @THD 1%)
650W

Surround speaker output power (Max @THD 1%)
2x 110W

Subwoofer output power (Max. @THD 1%)
300 W

Soundbar transducer
6x (46x90)mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer
(46x90)mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle
Passive Radiators
Subwoofer transducer
10” (260mm)

Frequency response
33Hz - 20kHz (-6dB)

Audio inputs
1 Optical, Bluetooth

Dimensions
Total soundbar dimensions (W x H x D)
1376 x 60 x 139 mm / 54.2" x 2.4" x 5.5"

Main soundbar dimensions (W x H x D)
1000 x 60 x 139 mm / 39.4" x 2.4" x 5.5"

Detachable surround speaker dimensions (each) (W x H x D)
202 x 60 x 139 mm / 8" x 2.4" x 5.5"

Subwoofer dimensions (W x H x D)
305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight
4.3kg / 9.5 lbs

Detachable surround speaker weight (each)
1.25 kg / 2.75 lbs

Subwoofer weight
10 kg / 22 lbs

Packaging dimensions (W x H x D)
381 x 1107 x 477 mm/ 15" x 43.6" x 18.8""

Packaging Weight
21.45 kg / 47.2 lbs

Control and Connection Specifications
USB port
Type A

USB rating
5V DC, 0.5A

Supporting file format
MP3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 - 48 kHz
MP3 bitrate
80 - 320 kpbs

Bluetooth version
Main bar - 5.0, Detachable surround speaker - 5.2

Bluetooth profile
Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6

Bluetooth transmitter frequency range
2400MHz – 2483.5MHz

Bluetooth transmitter power
<15dBm (EIRP)

Wi-Fi network
IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range
2412 - 2472MHz

2.4G Wi-Fi transmitter power
< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range
5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power
5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range
2406 - 2474MHz

2.4G wireless power
＜10dBm (EIRP）

Battery
Lithium battery
3.635V, 6600 mAh

Detachable surround speaker playtime
up to 12 Hours (may vary according to content type and volume level)
