True Dolby Atmos, DTS:X, and MultiBeam Surround Sound
Immerse yourself in theater-quality 3D sound. With two up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1000 delivers true Dolby Atmos and DTS:X together with MultiBeam for an enhanced 3D surround sound experience

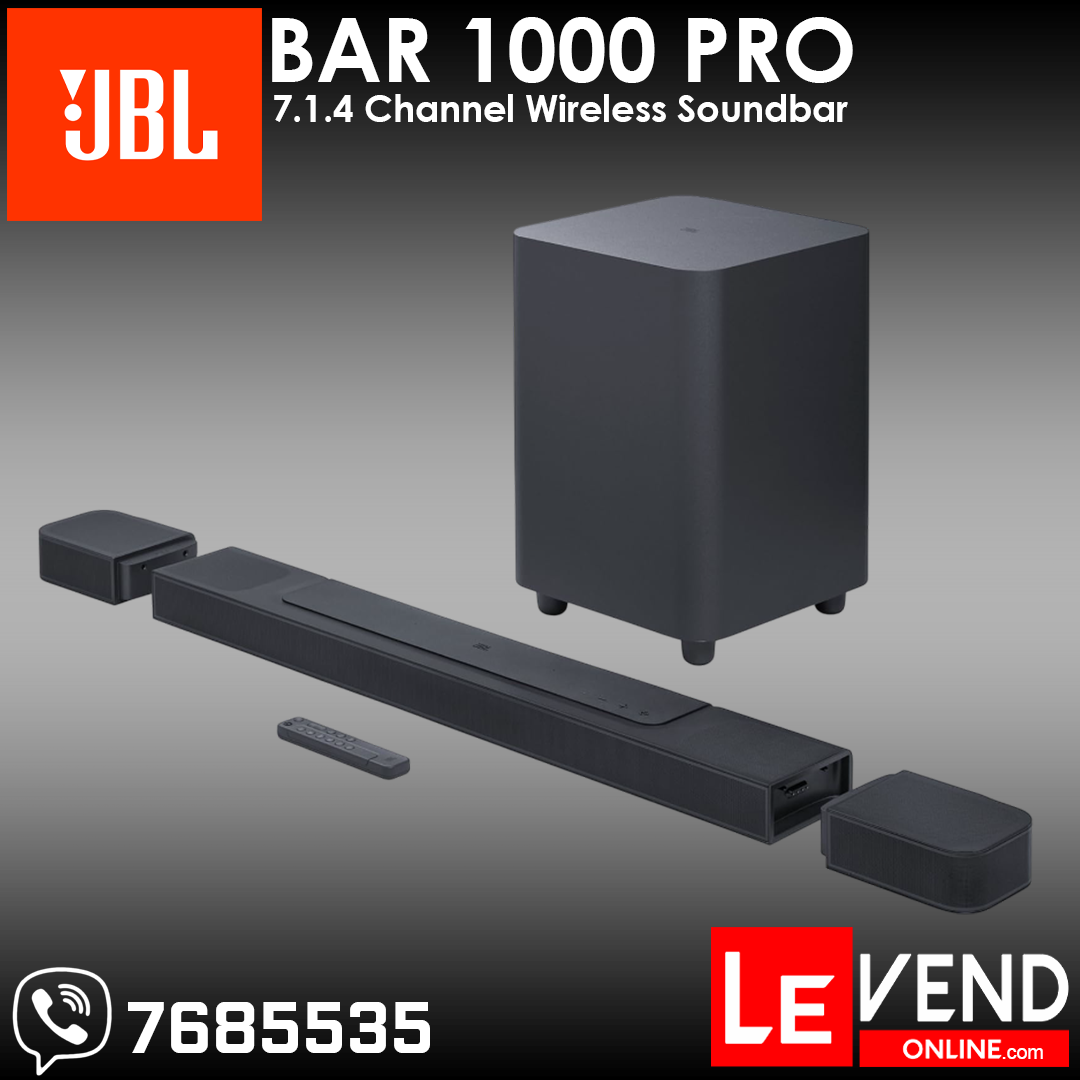

BAR 1000 Real surround sound with detachable surround speakers - Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest featureS

Experience movies, music and games with sound that puts you right in the middle of the action, thanks to 880W of total output power and thunderous bass from the 10" subwoofer. The JBL Bar 1000 has MultiBeam and four up-firing drivers—two in the bar and two in the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby Atmos and DTS:X 3D surround sound with a wide, spacious soundstage with no need to draw extra cables. You'll never miss a word with our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you're ready for some music, stream your favorite playlist from AirPlay, Alexa MRM, and Chromecast built-in and it'll feel like the band is right there. Have a great night out without leaving your living room.

General Specifications
Model
BAR 1000
Sound system
7.1.4 channel
Power supply
100 - 240V AC, ~ 50/60Hz
Networked standby power
< 2.0W
Operating temperature
0°C - 45°C

Audio Specifications
Total speaker power output (Max @THD 1%)
880W
Soundbar output power (Max @THD 1%)
440W
Surround speaker output power (Max @THD 1%)
2x 70W
Subwoofer output power (Max. @THD 1%)
300 W
Soundbar transducer
5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers
Surround speaker transducer
0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers
Subwoofer transducer
10” (260mm)
Frequency response
33Hz - 20kHz (-6dB)
Audio inputs
1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions
Total soundbar dimensions (W x H x D)
1194 x 56 x 125mm / 47" x 2.2" x 4.9"
Main soundbar dimensions (W x H x D)
884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"
Detachable surround speaker dimensions (each) (W x H x D)
155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"
Subwoofer dimensions (W x H x D)
305 x 440.4 x 305 mm / 12" x 17.3" x 12"
Soundbar weight
3.7 kg / 8.2 lbs
Detachable surround speaker weight (each)
1.4kg / 3.1 lbs
Subwoofer weight
10 kg / 22 lbs
Packaging dimensions (W x H x D)
1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"
Packaging Weight
19.4 kg / 42.7 lbs

Control and Connection Specifications
USB port
Type A

USB rating
5V DC, 0.5A

Supporting file format
MP3

MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate
16 - 48 kHz

MP3 bitrate
80 - 320 kpbs

Bluetooth version
5.0

Bluetooth profile
A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range
2400MHz – 2483.5MHz

Bluetooth transmitter power
<15dBm (EIRP)

Wi-Fi network
IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range

2.4G Wi-Fi transmitter power
< 20dBm (EIRP)

5G Wi-Fi transmitter frequency range
5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power
5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range
2406 - 2474MHz

2.4G wireless power
＜10dBm (EIRP）

Battery
Lithium battery
3.635V, 3283mAh
