Hikvision

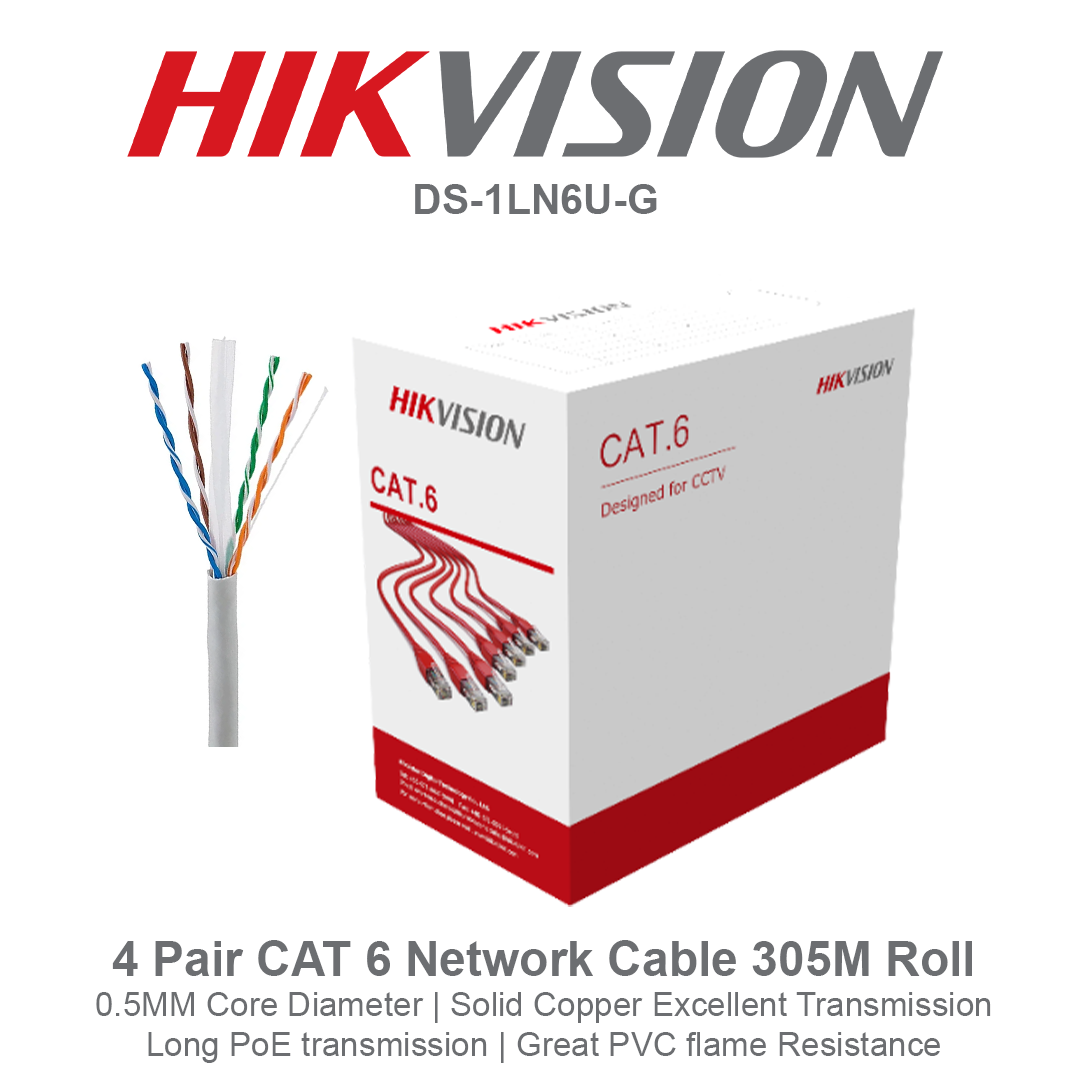

Hikvision CAT 6 Network Cable 305M Roll - DS-1LN6U-G
Hikvision CAT 6 Network Cable 305M Roll - DS-1LN6U-G
Couldn't load pickup availability
Delivery Options
Delivery Options
Free Delivery
- Male
- Hulhumale
- Boat Delivery
Air Cargo (Additional charges will apply)
- Redbox Delivery
- F&C Speed Delivery
- Maldivian Air Cargo Delivery
Full diameter 305 m CAT6 network cable
Core diameter: 0.55mm
Excellent transmission performance using solid copper
Quality verified by Fluke test
Guaranteed long PoE transmission distance
Great PVC flame resistance.
Category
Cat.6
Steath printing
HIKVISION 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference standard
ISO/IEC11801,ANSI/TIA-568-C.2,RoHS 2.0
Fire resistance
No
Conductor
Solid-Bare Copper (99.95%);0.55±0.005 mm，23 AWG
Insulation
HDPE;0.98±0.05 mm
Rip-cord
Yes
Separator
Yes
Sheath physical properties
Before aging
Tensile strength ≥ 13.5 Mpa;Elongation ≥ 150%
Aging period
100 ℃ × 24h × 10d
After aging
Tensile strength ≥ 12.5Mpa;Elongation ≥ 125%
Cold bend
-20 ± 2℃ × 4h，8 × cable O.D,no visible cracks
Electrical Characteristics(20℃)
1.0-250.0 MHz impedance
100 ± 15Ω @ ≤ 100MHz；100 ± 25Ω @ 100-250MHz
1.0-250.0 Mhz delay skew
≤ 45 ns/100 m
DC resistance
≤ 9.38 Ω/100 m
DC conductor resistance unbalance
≤ 5.0 %
Package dimension
400 mm (W) × 400 mm (H) × 240 mm (D)(15.75″ × 15.75″ × 9.45″)
Weight
12.3 ± 0.5kg
Cable length
(305 ±1.5) m
Ambient temperature
-20 ℃ to 75 ℃ (-4℉ to 167℉)
Operating voltage
60 V
Sheath
Thickness
0.5±0.10 mm
Material
PVC
Color
Grey
Diameter
6.00±0.30 mm
