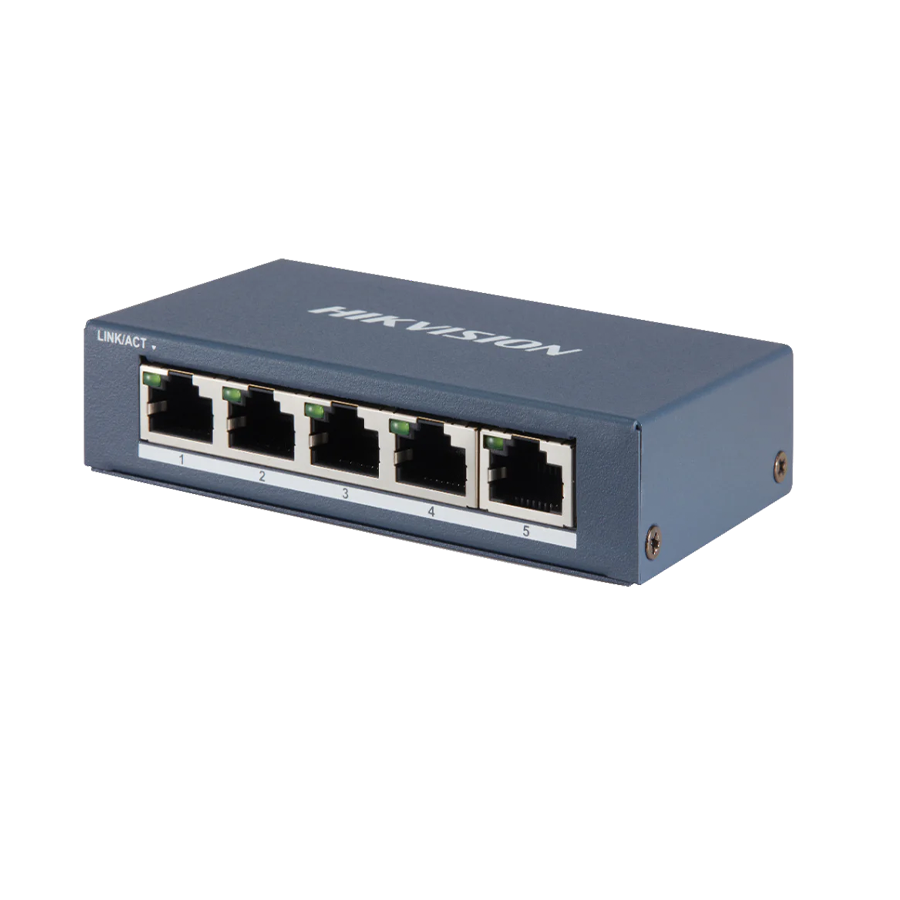

4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
6 KV surge protection for PoE ports
PoE power management
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Reliable fan-free design

Network Parameters
Ports
4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port

Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive

Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

Forwarding Mode
Store-and-forward switching

MAC Address Table
2 K

Switching Capacity
10 Gbps

Packet Forwarding Rate
7.44 Mpps

Internal Cache
1 Mbits

PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at

PoE Power Pin
End-span: 1/2(-), 3/6(+)

PoE Port
Ports 1 to 4

Max. Port Power
30 W

PoE Power Budget
35 W

General
Dimensions (W × H × D)
105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)

Shell
Metal material, fan-free design

Gross Weight
0.76 kg (1.67 lb)

Net Weight
0.27 kg (0.58 lb)

Operating Temperature
–10 °C to 55 °C (14 °F to 131 °F)

Operating Humidity
5% to 95% (no condensation)

Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)

Storage Humidity
5% to 95% (no condensation)

Power Supply
48 VDC, 0.8 A

Power Consumption In Idle
3 W

Max. Power Consumption
38 W
