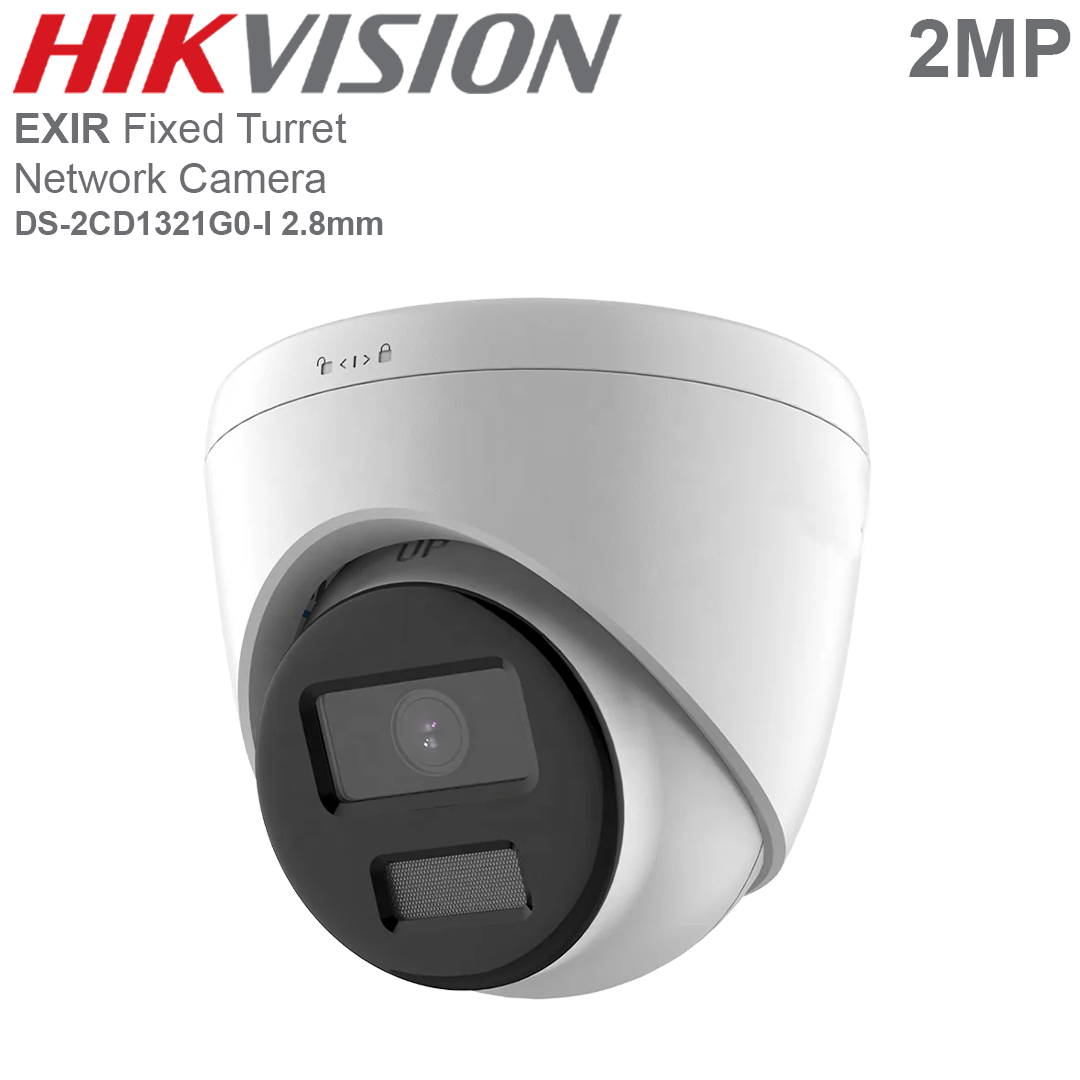

Model: DS-2CD-1321GO-I

High quality imaging with 2 MP resolution

Efficient H.264 compression technology

Clear imaging against strong back light due to DWDR technology

Water and dust resistant (IP67)

EXIR 2.0: advanced infrared technology with long IR range

Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100, 000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°
4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97°

Lens Mount: M12
Iris Type: Fixed
Aperture: F2.0

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression:
Main Stream: H.264//H.264+
Sub-Stream: H.264/MJPEG

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
Region of Interest (ROI): 1 fixed region for main stream

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View: Up to 6 channels

API: Open Network Video Interface, ISAPI

User/Host: Up to 32 users. 3 levels: administrator, operator and user

Client: iVMS-4200, Hik-Connect

Web Browser:
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): Digital WDR
SNR: ≥ 52 dB
Image Enhancement: BLC, 3D DNR

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event: Motion detection, video tampering alarm, exception
Linkage: Upload to FTP, notify surveillance center, send email

General
Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Dimension: Ø110 mm × 85.3 mm (Ø4.3" × 3.4")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 320 g (0.7 lb.)
With Package Weight: Approx. 556 g (1.2 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection: IP67 (IEC 60529-2013)
