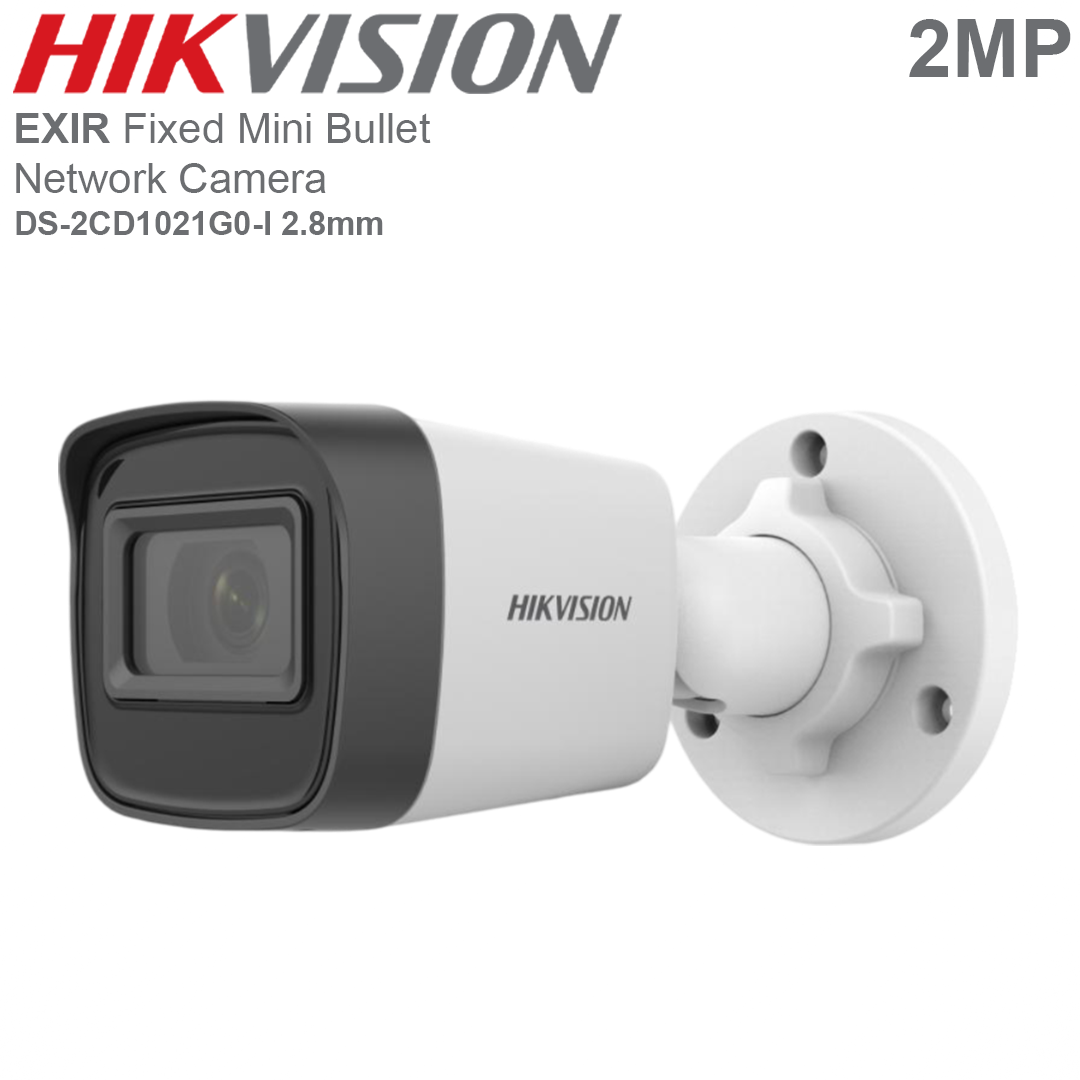

Model: DS-2CD1021GO-I

High quality imaging with 2 MP resolution

Water and dust resistant (IP67)

Easy installation with Power over Ethernet (PoE) technology

Camera
Image Sensor: 1/2.9" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination: Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:
2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112°
4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°

Lens Mount: M12
Iris Type: Fixed
Aperture: F2.2

DORI
DORI
2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m
4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 20 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR

Network
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)

Simultaneous Live View: Up to 6 channels
API: ISAPI,SDK
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
User/Host: Up to 32 users
3 user levels: administrator, operator, and user

Client: iVMS-4200
Web Browser: Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR): Digital WDR
SNR: ≥ 52 dB
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Image Settings: Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event: Motion detection, exception
Linkage: Notify surveillance center

General
Power: 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W

Material: Plastic
Dimension: 138.8 mm × 60.9 mm × 57.9 mm (5.5" × 2.4" × 2.3")
Package Dimension: 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
Weight: Approx. 175 g (0.4 lb.)
With Package Weight: Approx. 250 g (1.1 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

Safety:
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017

Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection: IP67: IEC 60529-2013
