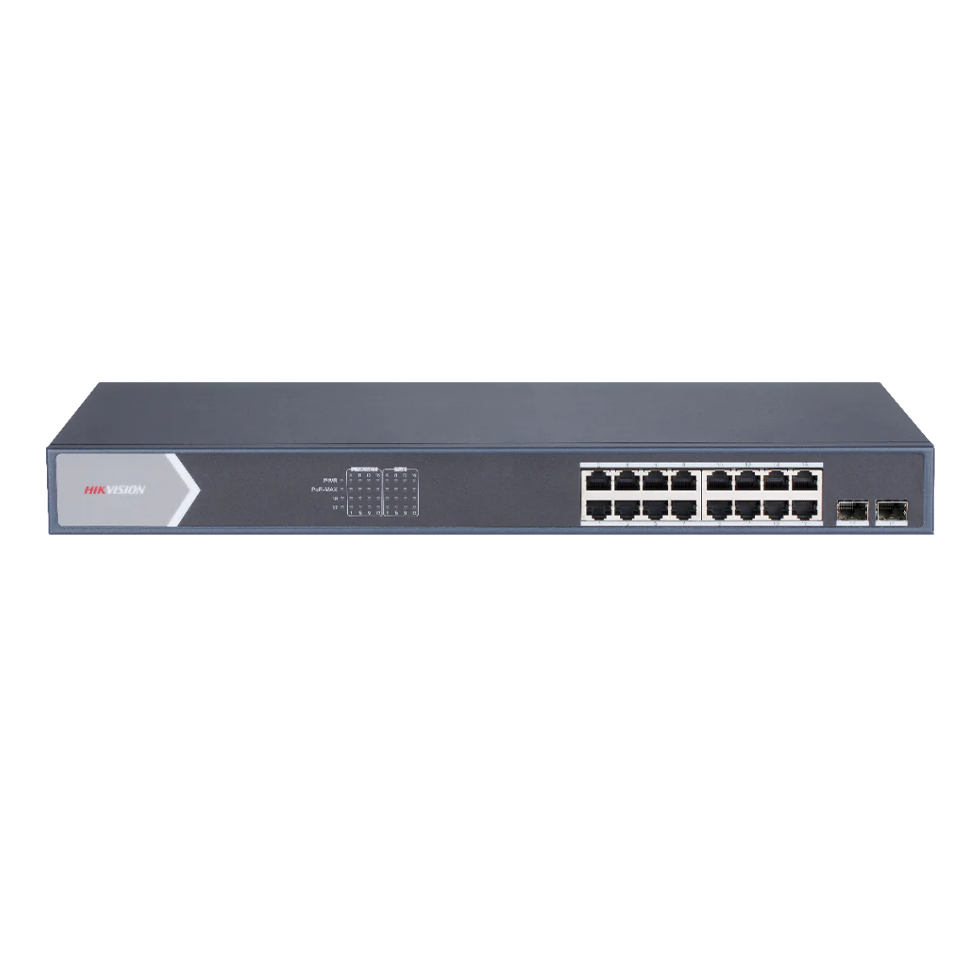

16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports
IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
6 KV surge protection for PoE ports
PoE power management
Gigabit network access
Wire-speed forwarding
Store-and-forward switching
Solid high-strength metal shell

Network Parameters
Ports
16 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports

Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive

Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Mode
Store-and-forward switching

MAC Address Table
8 K

Switching Capacity
36 Gbps

Packet Forwarding Rate
26.784 Mpps

Internal Cache
4.1 Mbits

PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at

PoE Power Pin
End-span: 1/2(-), 3/6(+)

PoE Port
Ports 1 to 16

Max. Port Power
30 W

PoE Power Budget
125 W

General
Dimensions (W × H × D)
440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)

Shell
Metal material, fan-free design

Gross Weight
2.50 kg (5.51 lb)

Net Weight
3.57 kg (7.87 lb)

Operating Temperature
–10 °C to 55 °C (14 °F to 131 °F)

Operating Humidity
5% to 95% (no condensation)

Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)

Storage Humidity
5% to 95% (no condensation)

Power Supply
100 to 240 VAC, 50/60 Hz, 2.5 A (Max)

Power Consumption In Idle
25 W

Max. Power Consumption
150 W
