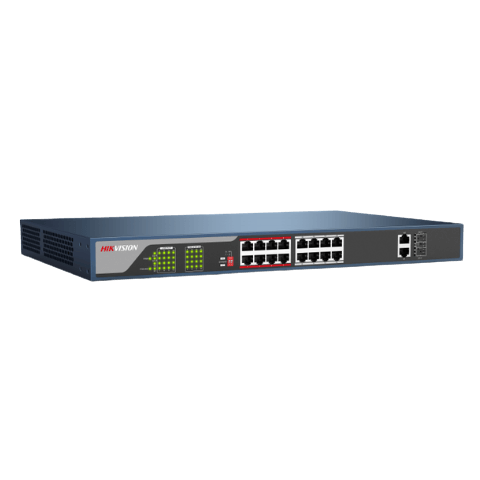

16 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.

Network Parameters
Ports
16 × 10/100 Mbps PoE port,2 × 1 Gbps combo

Port Type
RJ45 port,full duplex,MDIMDI-X adaptive

Standard
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z

High Priority Ports
Ports 1 to 8

Forwarding Mode
Store-and-forward switching

Working Mode
Standard mode (default),Extend mode

MAC Address Table
16 K

Switching Capacity
7.2 Gbps

Packet Forwarding Rate
5.3568 Mpps

Internal Cache
4 Mbits

PoE Power Supply
PoE Standard
IEEE 802.3af,IEEE 802.3at

PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port
PoE: Ports 1 to 16

Max. Port Power
30 W

PoE Power Budget
230 W

Software Function
Device Maintenance
Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.

General
Shell
Metal material, fan-free design

Net Weight
2.59 kg (5.71 lb)

Gross Weight
3.680 kg (8.11 lb)

Dimensions (W × H × D)
440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')

Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)

Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity
5% to 95% (no condensation)

Relative Humidity
5% to 95% (no condensation)

Power Supply
100-240 VAC, 50/60 Hz, Max. 2.5 A

Max. Power Consumption
250 W
