PREMIUM INDUSTRIAL DESIGN
Citation 100 blends innovation in home audio entertainment with a sophisticated and beautiful design. The premium blended wool fabric, made by Kvadrat, is dirt repellent and flame retardant.

SOUND QUALITY WITH SOPHISTICATION
For over 65 years for Harman Kardon has been dedicated to delivering luxurious audio experiences that allow the listener to feel the music and immerse them in the moment. Citation is the ultimate expression and is the worlds first truly premium product of its kind.

MUSIC EVERYWHERE
The Citation 100 delivers multi-room capablity by adding additional Citation speakers to create the ultimate whole house audio experience. You can play the same music or different music in different rooms and control it from a tablet or smartphone.

Beautiful Sound That Speaks To You

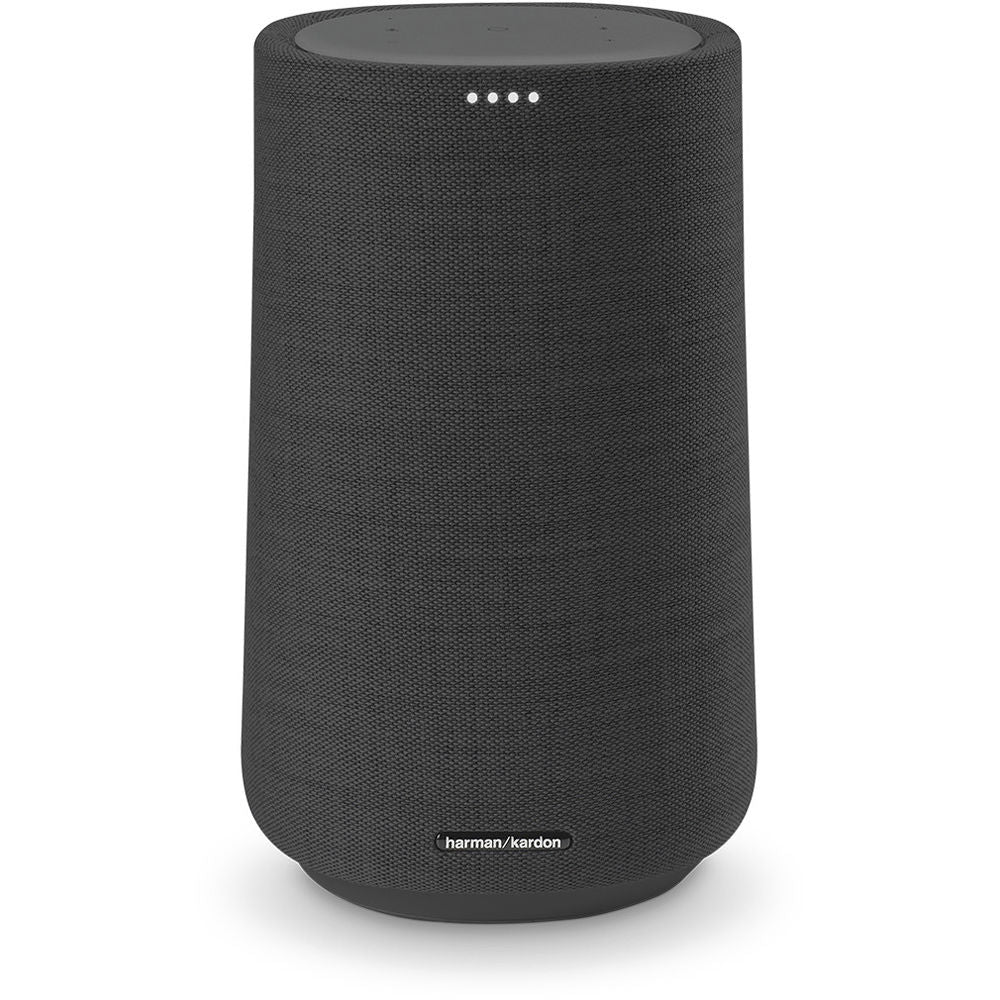

The Harman Kardon Citation 100 is a next generation compact smart speaker that fits in any space and fills your room with powerful sound. Easy to use, Citation 100 blends innovation in home audio with attention to detail in design, allowing for sophisticated looks and amazing sound with strong bass. Music lovers will love the room-filling sound and access to over 300 music services and high-definition streaming through Chromecast built-in. The Google Assistant brings convenient voice control to your Citation 100 for hands-free help around the home. Get answers, play music, organize your day, control your smart home, enjoy your entertainment and more, just with your voice!

General Specifications
Power Supply - 100-240V – 50/60Hz
Wireless network - 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range - 2412 – 2472MHz (2.4GHzISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power - <20dBm
2.4G Wi-Fi modulation - DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi transmitter power - <23dBm
5G Wi-Fi modulation - QPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wi-Fi transmitter frequency range - 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

Note - Citation 100 is intended to be used for streaming music. A consumer can stream Bluetooth audio to the speaker. A consumer can connect their speaker to the localWi-Fi Network and stream music with Google Chromecast. In addition, the speaker will work with Google Home. This product is designed to be instantly on and ready to play music at a moment's notice, therefore, the Bluetooth andWi-Fi connection must remain active at all times to ensure proper operation. Citation 100 is in compliance with the European Union energy legislation. Citation 100 complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013 as a networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality). Power consumption Standby

Audio Specifications
Signal-to-noise ratio - >80dB
Supported audio formats - HE-AAC, LC-AAC, MP3, Vorbis, WAV (LPCM), FLAC, Opus
Output power - 50W RMS
Transducer - 1 x 20mm tweeter, 1 x 102mm woofer

Dimensions
Dimensions (W x H x D) - 172 x 275 x 163 mm
Weight - 2.7 kg (6lb)

Control and Connection Specifications
Bluetooth® version - 4.2
Bluetooth transmitter frequency range - 2402 – 2480MHz
Bluetooth transmitter power - <5dBm
Bluetooth transmitter modulation - GFSK,π/4 DQPSK, 8DPSK
