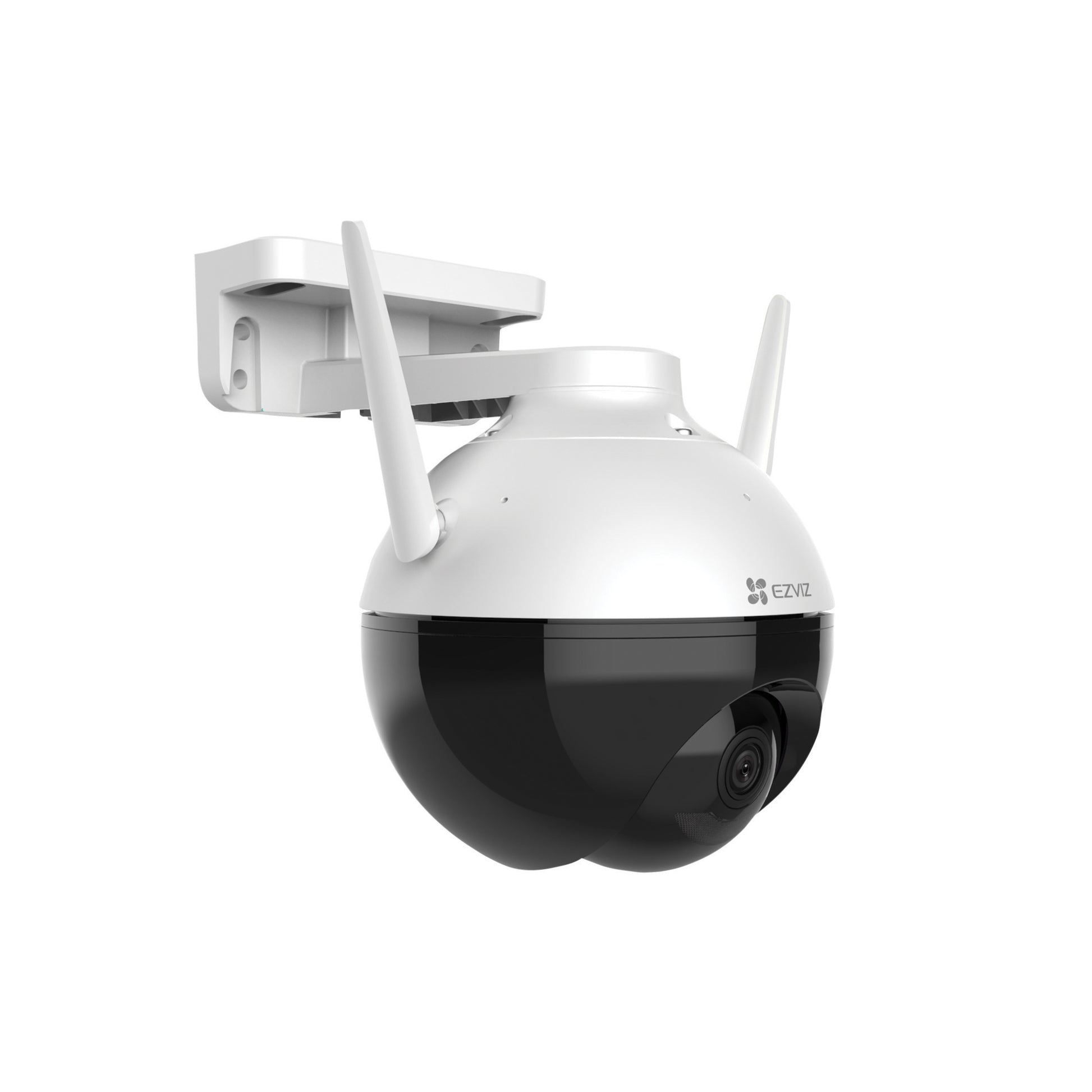

CS-C8C-A0-3H2WFL1

A better day begins with better vision.
Your surroundings are covered with this outdoor pan/tilt camera. With a 352° horizontal rotation and 95° vertical rotation,the C8C gives you an easy overview of all that’s around you.And the EZVIZ App puts it all right on your smartphone or mobile device.

AI-powered person detection.
Smarter than ever! As an upgrade from simple motion detection, the embedded AI algorithm intelligently detects the motion of human shapes in real time. When people enter your customized detection area, you will be alerted immediately.

Full-color night vision.
Your night vision is now lit up and vividly restored to full-color thanks to two built-in spotlights and professional optical lenses.

Strobe light for enhanced protection.
Coming with two spotlights for active protection, the camera allows you to manually flash the light via the app or set it to flash upon detection of people passing by.

Elegant and durable design.
Say goodbye to bulkiness. This camera adopts a novel round and compact design with a simple black and white housing. It’s stylish enough to embellish your life but simple enough to look good anywhere. What’s more, its weather proof design keeps it operating without being interrupted by any kind of weather – wind, rain, or snow.

Hear what’s happening.
The built-in noise-canceling microphone picks up clear audioand lets you hear and see what’s happening in your backyard wherever you are.

H.265 video technology.
The C8C features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the previous video compression standard (H.264).

Two storage options.
With two storage options, you can choose where to save your recordings. The camera can even save to two locations at the same time for added backup in case the camera is damaged, or your network crashes.

Security at your fingertips.
With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you

Camera
Image Sensor - 1/2.7" Progressive Scan CMOS
Shutter Speed - Self-adaptive shutter

Lens - 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle:55° (Horizontal), 66° (Diagonal)

PT Angle - Pan: 352°, Tilt: 95°
Minimum Illumination - 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR
Lens Mount - M12
Day & Night - IR-cut filter with auto-switching
DNR - 3D DNR
WDR - Digital WDR
BLC - Supports
Black & White Night - 30 m / 100 ft.
Video & Audio
Max. Resolution - 1920 × 1080
Frame Rate - Max:30 fps; Self-Adaptive during network transmission
Video Compression - H.265 / H.264
Video Bit Rate - Full HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate - Self-Adaptive
Max. Bitrate - 2 Mbps

Network
Wi-Fi Standard - IEEE802.11b, 802.11g, 802.11n
Frequency Range - 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth - Supports 20 MHz
Security - 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate - 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps
Wi-Fi Pairing - AP pairing
Protocol - EZVIZ cloud proprietary protocol
Interface Protocol - EZVIZ cloud proprietary protocol
Wired Network - RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port)

Storage
Local Storage - MicroSD card slot (Max. 256G)
Cloud Storage - EZVIZ Cloud Storage

Function
Smart Alarm - AI Person Detection
Customized Alert Area - Supports
Audio - Supports mic
General Function - Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General
Operating Conditions - -30°C ~ 60°C (14°F to 113 °F), Humidity 95% or less (non-condensing)
IP Grade - IP65
Power Supply - DC 12V / 1A
Power Consumption - MAX. 6W
Dimensions - 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch)
Packaging Dimensions - 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch)
Weight - 885 g (31.22 oz)
Net Weight - 510 g (17.99 oz)
