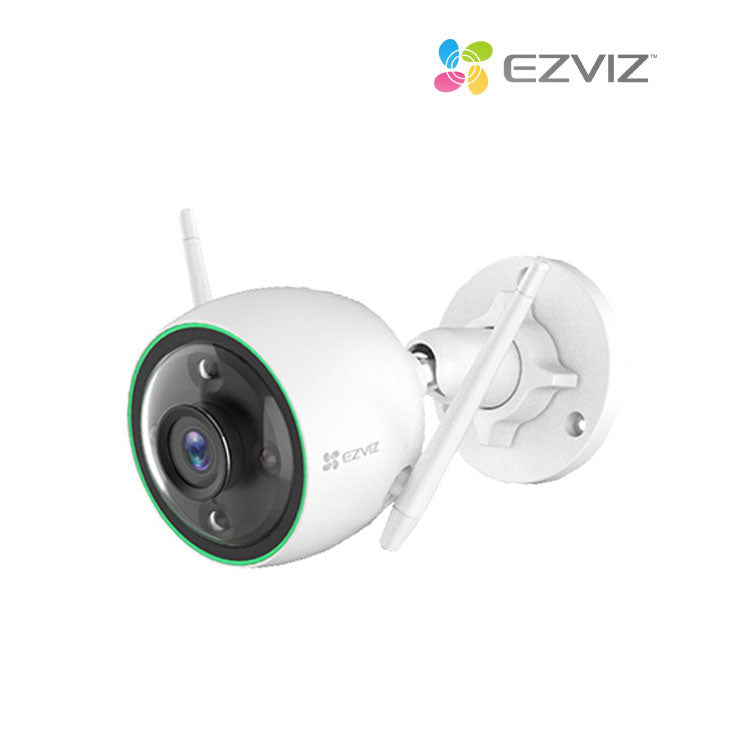

CS-C3N-A0-3H2WFRL (1080P)

It takes the night shift for you.
The EZVIZ C3N comes with three night vision modes and AI-powered person detection capability, providing you with sharp nighttime monitoring and precise alerts. Now you can rest easy knowing everything is protected.

Vivid night imaging.
Equipped with professional optical lenses, two built-in spotlights, and two infrared (IR) lights, the C3N renders sharp color imaging even in pitch-black darkness. And, more than just helping produce color night time imaging, the spotlights can also be used as floodlights to illuminate hidden areas around your property.

Three night vision modes.
When extra lighting is not a necessity to you, simply switch the camera to black-and-white night vision mode via the EZVIZ App to turn off the spotlights. What’s even greater is that you can select smart night vision mode. In this mode, the C3N will automatically switch from black-and-white monitoring to color monitoring, turning on the spotlights when it detects human movement. The alert video will be recorded in full-color, so you get all the details needed.

AI-powered person detection.
As an upgrade from simple motion detection, the embedded AI algorithm intelligently detects the motion of human shapes in real-time. When people enter your customized detection area, you will be alerted immediately.

More details of people captured.
The C3N is powered by advanced PQ technology that is based on intelligent sensing of the actual environment. When people approach, it automatically adjusts the image brightness to avoid overexposure. You see much more detail than the video from conventional systems.

Proactive protection.
Upon detection of human movement, the C3N camera can automatically flash or be set manually to flash the two spotlights* to deter unwanted visitors. What’s more, when the person turns their head to the flashing light source by instinct, they will be clearly recorded on camera.

Hear what’s happening.
The built-in noise-canceling microphone picks up clear audio up to 5 meters (16.4 ft.) away. Now you can hear and see what’s happening in your backyard no matter where you are.

Enhanced Wi-Fi connection.
The C3N signal boasts wall-penetration and anti-interference capabilities thanks to two powerful external antennas. Even if the router is far away, the C3N is still able to stay connected stably and reliably

Save money on storage and bandwidth.
The camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the previous H.264 video compression standard.

Easy installation.
The C3N camera features a 360° swivel and base so that you can install it on your ceiling or wall securely. With a few steps, your own sophisticated security system will be operating smoothly.

Camera
Image Sensor - 1/2.7” Progressive Scan CMOS
Shutter Speed - Self-adaptive shutter
Lens - 2.8 mm @ F2.0, view angle: 104° (Horizontal), 125° (Diagonal) 4 mm @ F2.0, view angle: 86° (Horizontal), 102° (Diagonal) -
Lens Mount - M12
Day & Night - IR-cut filter with auto-switching -
DNR - 3D DNR
WDR - Digital WDR

Compression
Video Compression - H.264 / H.265
Video Bit Rate - Full HD; HD; Standard. Adaptive bit rate.
Max. Resolution - 1920 × 1080
Frame Rate - Max: 30 fps; Self-adaptive during network transmission
BLC - Supports

Interface
Storage - Micro SD card slot (max. 256 GB)
Wired Network - RJ45 × 1 (10 M/100 M Self-adaptive Ethernet port)

Network
Smart Alarm - AI-powered person detection
Wi-Fi Pairing - AP pairing
Protocol - EZVIZ cloud proprietary protocol
Interface Protocol - EZVIZ cloud proprietary protocol
Max. Bitrate - 2 Mbps

Wi-Fi
Standard - IEEE802.11 b/g/n
Frequency Range - 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth - Supports 20 MHz
Security - 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK -
Transmission Rate - 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps

General
Operating Conditions - Temperature: -30°C to 60°C (-22°F to 140°F), humidity: 95% or less (non-condensing)
Power Supply - DC 12V / 1A
Power Consumption - Max. 7W
IP Grade - IP67
Night Vision Distance (Black/White Night Vision Mode) - Max. 30 meters (98.43 ft.)
Audio Reception - Max. 5 meters (16.4 ft.)
Dimensions - 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch)
Packaging Dimensions - 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) -
Weight - 422 g (0.93 lbs)
