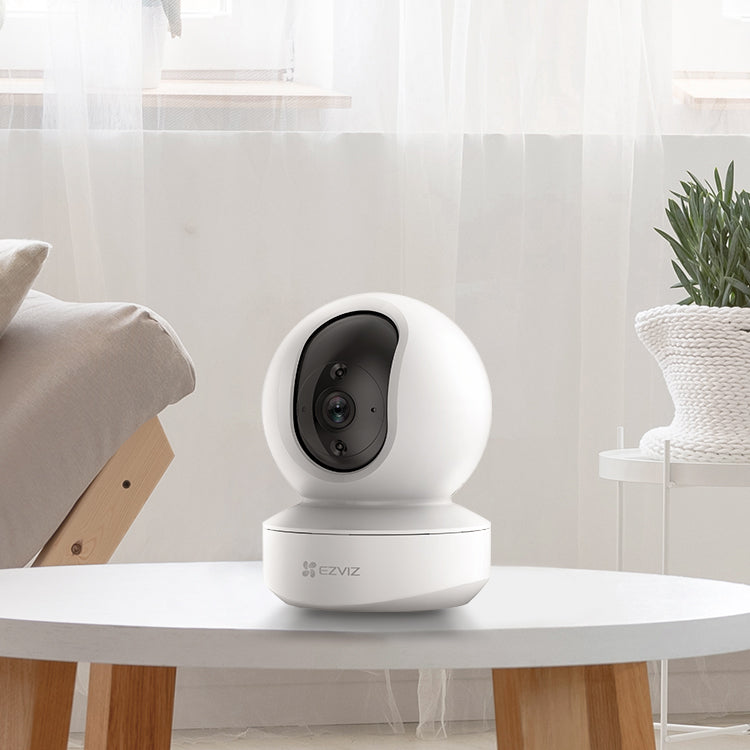

Smart Wi-Fi Pan & Tilt Camera
Watch over your entire space easily with the TY1 Camera’s 360-degree field-of-view and its smart tracking feature. It’s got you covered – all day & all night.

Records every corner in 4MP resolution
This powerful camera records images in 4MP resolution, rendering crisp details even in 4x digital zoom, so you see everything clearly in live video and playback.

Zero blind spots
Keep tabs on every corner with just one TY1 4MP. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.

Get the notifications that matter
A lot of activities go on inside your home. Don’t want to get alerted repeatedly when your curtains flutter in the wind? The TY1 4MP is smart enough to identify human activities in particular. You can choose to get alerted only when somebody is detected on camera.

Smart tracking
When it detects a moving object, the camera is smart enough to automatically track its motion while alerting you with an image in real-time.

Communication, anytime
Talk to your loved ones and deter unwelcome strangers – all by using the camera’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

See further in the dark
Enjoy round-the-clock protection with the TY1 4MP camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.

A visual diary made of precious moments
The TY1 4MP ensures that you capture unforgettable moments and store the memories safely

One app for everything, every day
EZVIZ App will always connect you to your home, even if you are far away from it.

Camera
Image sensor: F2.2@1/3" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR

Compression
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD, Full HD, HD, Standard.Adaptive bit rate.

Max. Resolution: 2560 × 1440
Frame Rate: Max. 20 fps; Self-Adaptive during network transmission

Network
Smart Alarm: Human Motion detection
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol

Interface
Storage: Micro SD card slot (Max. 256G)
Power: Micro USB
Wired Network: RJ45 × 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
Output Power(EIRP): 19 dBm
Antenna Gain: 1.9 dBi

General
Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply: DC 5V/2A
Power Consumption: Max. 5W
IR Range: Max. 10 m (32.81 ft)
Dimensions: 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch)
Packaging Dimensions: 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
Bare Weight: 259g (9.14oz)
