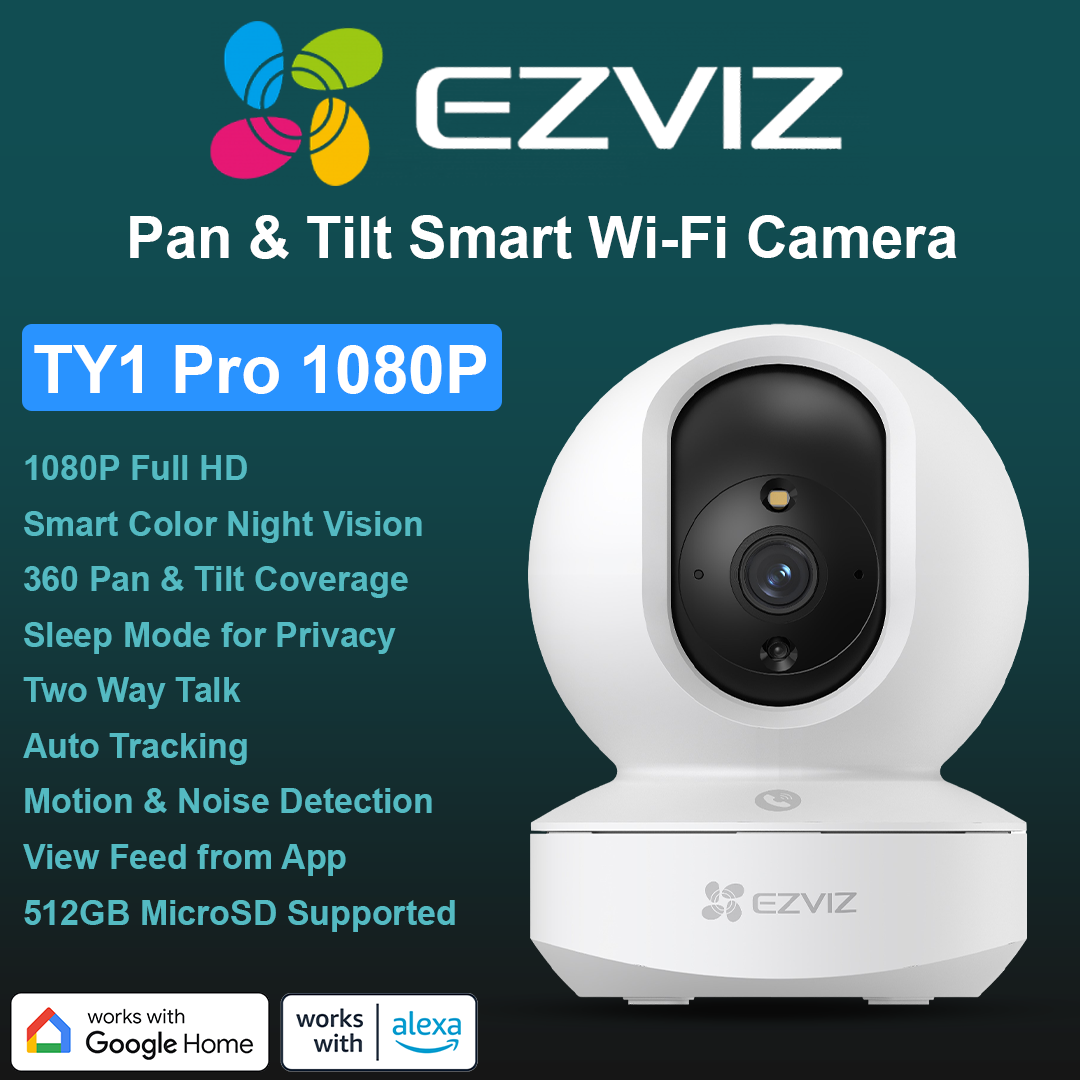

It's time to upgrade your everyday home camera with the capabilities of the latest TY1 Pro. Designed to protect your indoor spaces with a wide, clear vision and smart detection, the TY1 Pro also boasts useful, unique features that make remote communication easier for everyone in the family. You can use the camera to keep an eye on your children and parents, watch how your pets behave at home, monitor your family business and much more.

1080p Resolution
Panoramic View
Smart Color Night Vision
Patrol Mode
Two-Way Calling with Touch Button
Smart Human Shape Detection
Auto-Tracking
Loud Noise Detection
Sleep Mode for Privacy Protection
H.265 Video Technology
Smart Integration with Google Assistant & Amazon Alexa
Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage

360 degrees with patrol mode, means no spot left uncovered
The TY1 Pro grants you a sweeping view of your indoor space with its smooth camera rotation. It can record crisp details at your preferred viewing angle, or you can customize specific patrol pinpoints using the patrol mode for the camera to work on its own.

360° protection with customized patrol
The TY1 Pro pans and tilts automatically to eliminate blind spots with its unique patrol mode. You can even customize patrol pattern in accordance with your very special home, leaving no corner uncovered.

Captures vivid colors in the night time
Up to your choice, the TY1 Pro can use a built-in spotlight to render color night vision even in the pitch darkness. Its black-and-white night vision also serves well to keep you well informed.

Alert you about sudden loud noises
When a baby cries or your pet breaks a vase, the camera can detect such sudden changes of the sound level in the environment.

Touch to call to stay in touch
Anyone can easily initiate video calls by taping the touch call button on the camera – even kids and the elderly can reach out to you effortlessly.

Detect and follow people movements
The camera can smartly distinguish human shapes in particular. It also automatically locks on the detected person to capture the whole activity.

Get notified instantly
Upon detection, the TY1 Pro promptly sends notifications to your phone. You can check activity details and reply videos as you want.

High-quality two-way audio
With the built-in microphone and speaker, you can always engage in real-time conversations with your loved ones even from afar.

Hands-free control
With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.

Dual video storage options
Capture and secure important moments or unforgettable memories on a large 512 GB microSD card, or by subscribing to the EZVIZ CloudPlay

H.265 Video Technology
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264

One app for everyday, everything
EZVIZ App will always connect you to your home, even if you are far away from it.

Instant Alert
Remote Control
Live View with 8x Zoom
Detection Zone
Video History
Connected Home

Camera
Image sensor: 1/3" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm @ F1.6; Viewing angle: 80° (Horizontal), 43° (Vertical), 90° (Diagonal)
Lens Mount: M12
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR

Compression
Video Compression: H.264/H.265
Video Bit Rate: Adaptive bit rate.

Max. Resolution: 1920 × 1080
Frame Rate: Self-Adaptive during network transmission

Network
Smart Alarm: Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol

Interface
Storage: Micro SD card slot (Max. 512G)
Power: Type-C
Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Output Power(EIRP): 19 dBm
Antenna Gain: 1.9 dBi

General
Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply: DC 5V/1A
Power Consumption: MAX. 5W
IR Range: MAX. 10 meters(32.81ft)
Dimensions: 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
Packaging Dimensions: 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)
Bare Weight: 218g (0.48lb)

In the box
In the box: - Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- EZVIZ Screw Kit
- Regulatory Information
- Quick Start Guide
