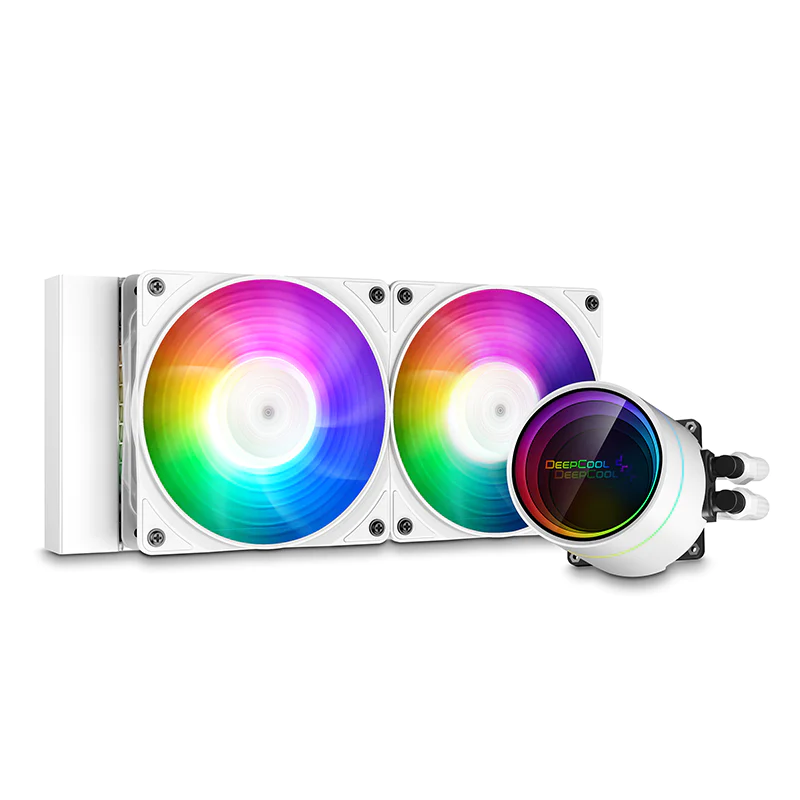

The DeepCool CASTLE 240EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.

BETTER BY DESIGN
The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.

SHINE ON
Two DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.

EFFICIENT COOLING
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

POWERFUL AND QUIET
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

MORE SURFACE AREA
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

Supports
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD
TRX4/sTR4/AM4

Net Weight - 1380 g
Radiator Dimensions - 282×120×27 mm
Radiator Material - Aluminum
Tube length - 380 mm
Pump Dimensions - 86 ×75×71 mm
Pump Speed - 2550 RPM±10%
Pump Noise - 17.8 dB(A)
Pump Connector - 3-pin
Pump Rated Voltage - 12 VDC
Pump Rated Current - 0.2 A
Pump Power Consumption - 2.4 W
Fan Dimensions - 120×120×25 mm
Fan Speed - 500~1800 RPM±10%
Fan Airflow - 69.34 CFM
Fan Air Pressure - 2.42 mmAq
Fan Noise - ≤30 dB(A)
Fan Connector - 4-pin PWM
Bearing Type - Hydro Bearing
Fan Rated Voltage - 12 VDC
Fan Rated Current - 0.17 A
Fan Power Consumption - 2.04 W
LED Type - Addressable RGB LED
LED Connector - 3-pin(+5V-D-G)
LED Rated Voltage - 5 VDC
LED Power Consumption - 2.25 W（PUMP）/ 4.4 W（FAN×2）
