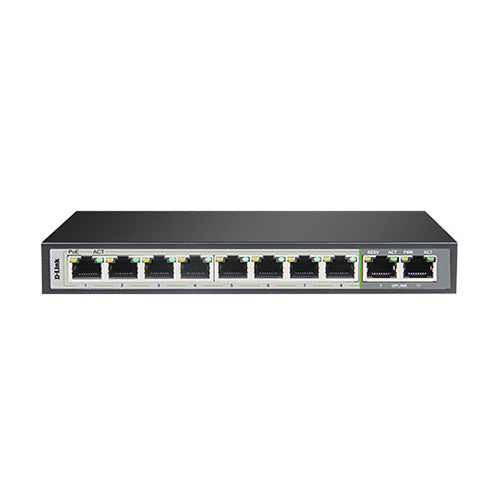

Supports 10 port 1Gps with 8 PoE port switch that offers 8 10/100/1000 Mbps PoE ports, 2 10/100/1000Mbps.

8 10/100/1000 Mbps gigabit ethernet ports
2 10/100/1000 Mbps uplink port
120watts available PoE
Flow control for protection against data loss
Maximum distance of 250m
Light protection (6kV)
Operating Temperature: 0 to 40 deg C (32 to 104 deg F)

Long-Distance Transmission with Surge Protection

With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable.The DGS-F1010P-E features four 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 120W.

Easy Deployment and PoE Convenience
The DGS-F1010P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Different Switch working mode
The DGS-F1010P-E switch works in 4 operating modes using DIP switch

VLAN: Isolating ports each other, restrain network storms effectively and improve network performance
EXTEND: Supports 250meters long distance power supply (recommended cat 5 or above)
PoE: Automatic detection power of port, power off and restart the device if find PD device crash
QoS: Customize application prioritization and increase network sensitivity. For example, video priority, monitoring transmission more smoothly

Network Interface - 8 10/100/1000Mbps PoE RJ45 port (port 1 ~port 8) , 2 10/100/1000Mbps uplink RJ45 port (port 9~port 10)

Transmission Rate - 10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto, Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port

Protocols and Standards - IEEE802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE802.3x Flow Control, IEEE 802.3af/at standard

Performance - Bandwidth: 20 Gbps (no block), Network delay (100 to 100M bps): maximum 20 μs (using 64byte packet), Frame filtering and transmission rate, 10M: 14,800pps, 100M: 148,800pps, 1000M: 1488,00pps

LEDs Indicator - Power, LINK/ACT，POE

POE Pin - 1/2(+) 3/6(-)

Power - Total Power: 120W

Lightning protection - 6KV

Physical specifications - Dimensions (LxWxH): 184 x 94 x 27mm, Weight: 1.05kg

Environmental norms - Operating Temperature: 0°~40°C Storage Temperature: -10°C~70°C, Operating
Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
