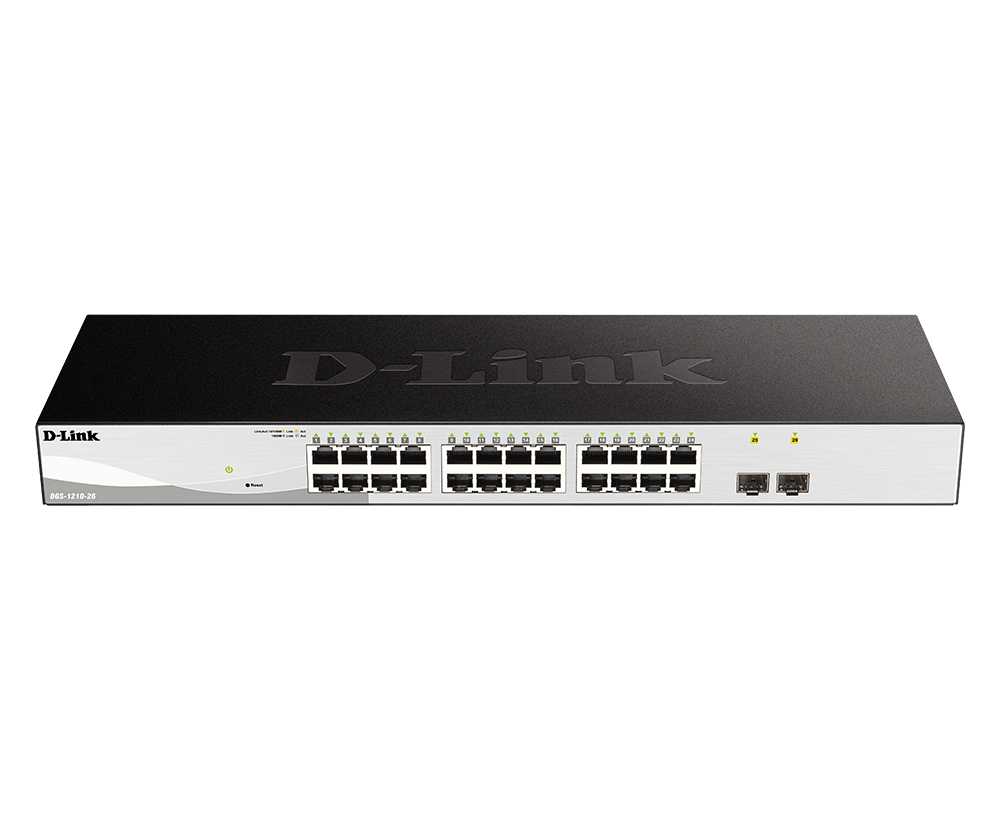

24 x 10/100/1000BASE-T ports 2 x Gigabit SFP ports Advanced L2 switching and security features L2+ Static Routing Optional “standard mode” or “surveillance mode” management user interface PoE Support Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model. Automatic Configuration The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Extensive Management and Layer 2 Features The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. Specifications 1000Base-T Interface - 24 1000M SFP Interface - 2 Auto MDI/MDIX - Yes 10/100/1000BASE-T ports - 24 SFP ports - 2 Switch Capacity - 52 Gbps Max. Packet Forwarding Rate - 38.7Mpps Store & Forwarding Forwading - Yes Dimension - 440mm x 140 mm x 44mm Operation Temperature - -5 - 50°C Storage Temperature - -20-70°C Weight - 2.06 kg Operation Humidity - 0% - 95% RH Storage Humidity - 0% ~ 95% RH Operating Altitude - 1500 meters Maximum Power Consumption - 15.22 W/100 V
15.11 W/240 V Standby Power Consumption - 5.01 W/100V / 5.06 W/240V Maximum Heat Dissipation - 51.93 BTU/hr (100V)
51.57 BTU/hr (240V) Acoustic - 0 dB MTBF - 1,082,534 hours CPU Speed - 500MHz DRAM Size - DDR3 128MB Flash Memory Size - 32MB Packet Buffer Size - 4.1MBits FAN - Fanless Power Input - 100-240 VAC Comply with RoHS 6 - Yes Power Saving By Link Status - Yes Energy Efficiency Ethernet (EEE) - Yes Power Saving By Cable Length - Yes Power Saving By Port Shut-Off - Yes Power Saving By System Hibernation - Yes MAC Address Table Size - 8K 802.3x Flow Control - Yes Head-of-line (HOL) Blocking Prevention - Yes 802.1s Multiple Spanning Tree (MSTP) - Yes 802.1D Spanning Tree (STP) - Yes 802.1w Rapid Spanning Tree (RSTP) - Yes Root Restriction - Yes 802.3ad Link Aggregation - Yes Link Aggregation Group Per Device - 4 Max Port Per Link Aggregation Group - 8 Jumbo Frame - 10,000 Bytes Loopback Detection (LBD) - Yes Port Mirroring - Yes IGMP Snooping - Yes IGMP Snooping Fast Leave - Yes Max IGMP Snooping Groups - 256 MLD Snooping - Yes MLD Snooping Groups - Yes MLD Snooping Fast Leave - Yes 802.1Q VLAN - Yes VLAN Groups - Yes Port-based VLAN - Yes Voice VLAN - Yes Auto Surveillance VLAN - Yes Asymmetric VLAN - Yes IP Interface - Yes Max Number of IP Interface - 4 ARP - Yes ARP Entries - Yes IPv6 Neighbor Discovery (ND) - Yes ND Entries - 128 Default Route - Yes Static Route - Yes Number of Queue - Yes Class of Service (CoS) - Yes Strict Priority Queue (SPQ) - Yes Weighted Round Robin (WRR) - Yes Port-based Bandwidth Control - Yes Max Access Control List (ACL) Entries - Yes MAC Access List - Yes IP Access List - Yes IPv6 Access List - Yes SSH - Yes SSL - Yes (only support TLS 1.0) Port Security - Yes Broadcast/Multicast/Unicast Storm Control - Yes Traffic Segmentation - Yes Smart IP-MAC-Port Binding (Smart IMPB) - Yes D-Link Safeguard Engine - Yes DHCP Server Screening - Yes ARP Spoofing Prevention - Yes DoS Attack Prevention - Yes 802.1X - Yes Port based 802.1X Authentication - Yes Authentication for Management Access - Yes RADIUS - Yes Trusted Host - Yes Cable Diagnostics - Yes Simple Network Time Protocol (SNTP) - Yes Web-based GUI - Yes Telnet Server - Yes SNMP - Yes SNMP Trap - Yes TFTP Client - Yes System Log - Yes RMONv1 - Yes LLDP - Yes LLDP-MED - Yes D-Link Discover Protocol (DDP) - Yes (v0.26) DHCP/BootP Client - Yes DHCP relay - Yes Dual Images - Yes Dual Configurations - Yes Debug Command - Yes Ping - Yes D-Link Network Assistant - Yes (Chrome edition) Smart Wizard - Yes
