Cable diagnostics troubleshooting
3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
Compact and durable housing, high port count, and fanless design for noise-free operation

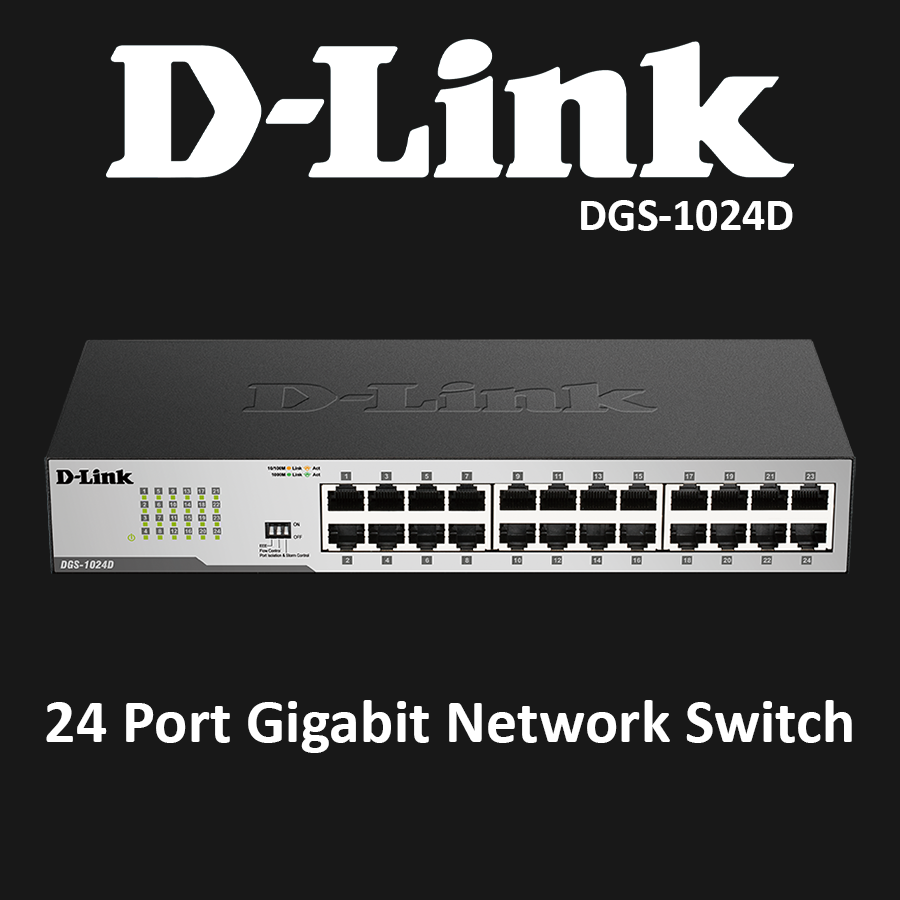

24-Port Gigabit Unmanaged Switch
The D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch offers an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.

Improved Network Efficiency
The DGS-1024D brings the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Improved Network Efficiency
The DGS-1024D incorporates several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.

Green Technology
The 24-Port Gigabit Unmanaged Switch helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. This environmentally friendly switch is also RoHS compliant, uses recyclable packaging, and minimises the use of harmful substances. These green features combined provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

Innovative Design
The DGS-1024D features a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 24-Port Gigabit Unmanaged Switch is small, lightweight, wall-mountable, and ideal for any business with demanding requirements and a small budget.

1000Base-T Interface - 24
Auto MDI/MDIX - Yes
Switching Capacity - 48 Gbps
Max. Packet Forwarding Rate - 35.71Mpps
Store & Forwarding Forwading - Yes
Dimension - 280 × 180 × 44 mm
Weight - 1.3kgs
Operation Temperature - 0 ~ 40 °C
Storage Temperature - - 10 ~ 70 °C
Operation Humidity - 0% ~ 95% RH
Storage Humidity - 0% ~ 95% RH
Operating Altitude - 2000m
Maximum Power Consumption - 13.3W
Standby Power Consumption - 4.4W
Maximum Heat Dissipation - 45.35 BTU/h
MTBF - 863,100 hours
Power Input - AC：100 ~ 240 V
Packet Buffer Size - 512KBytes
FAN - Fanless
Comply with RoHS 6 - Yes
Energy Efficiency Ethernet (EEE) - Yes
Power Saving By Link Status - Yes
Power Saving By Cable Length - Yes
MAC Address Table Size - 8,192
802.3x Flow Control - Yes
Head-of-line (HOL) Blocking Prevention - Yes
Jumbo Frame - 10,000 Bytes
Surge/Lightning Protection (AC Power Inet) - 1kV
Surge/Lightning Protection (All Ethernet Ports) - 1kV
Air Discharge - 8kV
Contact Discharge - 4kV
