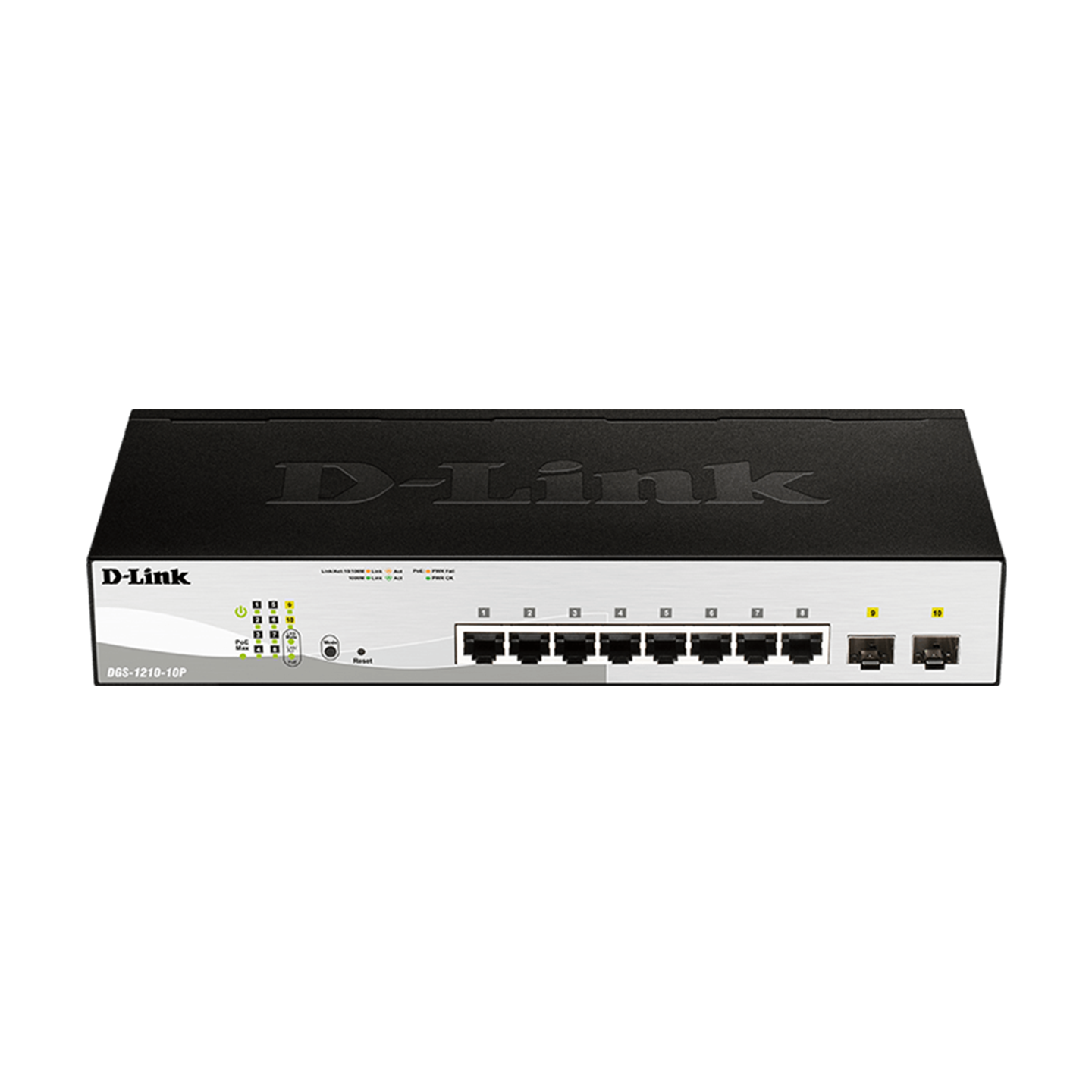

8 x 10/100/1000BASE-T PoE ports 2 x Gigabit SFP ports Advanced L2 switching and security features L2+ Static Routing Optional “standard mode” or “surveillance mode” management user interface 65W PoE budget Specifications 1000Base-T PoE Interface - 8 1000M SFP Interface - 2 Auto MDI/MDIX - Yes 10/100/1000BASE-T PoE ports - 8 SFP ports - 2 Switch Capacity - 20 Gbps Max. Packet Forwarding Rate - 14.88 Mpps Store & Forwarding Forwading - Yes Dimension - 280mm x 126 mm x 44mm Weight - 0.95 kg Operation Temperature - -5 - 50°C Storage Temperature - -20-70°C Operation Humidity - 0% - 95% RH Storage Humidity - 0% ~ 95% RH Operating Altitude - 1500 meters Maximum Power Consumption - PoE on
81.9 W/100 V
80.6 W/240 V PoE off
7.6 W/100 V
7.5 W/240 V Standby Power Consumption - 2.5 W/100V / 2.5 W/240V Maximum Heat Dissipation - 279.59 BTU/hr (100 V)
275.04 BTU/hr (240 V) Acoustic - 0 dB MTBF - 729,258 hours Power Input - 100-240 VAC CPU Speed - 500MHz DRAM Size - DDR3 128MB Flash Memory Size - 32MB Packet Buffer Size - 4.1MBits FAN - Fanless Comply with RoHS 6 - Yes Energy Efficiency Ethernet (EEE) - Yes Power Saving By Link Status - Yes Power Saving By Cable Length - Yes Power Saving By Port Shut-Off - Yes Power Saving By System Hibernation - Yes Time-based PoE - Yes Maximum PoE Budget - 65Watts PoE Budget - 65 W MAC Address Table Size - 8K 802.3x Flow Control - Yes Head-of-line (HOL) Blocking Prevention - Yes 802.1D Spanning Tree (STP) - Yes 802.1w Rapid Spanning Tree (RSTP) - Yes 802.1s Multiple Spanning Tree (MSTP) - Yes Root Restriction - Yes 802.3ad Link Aggregation - Yes Link Aggregation Group Per Device - 8 Max Port Per Link Aggregation Group - 8 Port Mirroring - Yes Jumbo Frame - 10,000 Bytes Loopback Detection (LBD) - Yes IGMP Snooping - Yes Max IGMP Snooping Groups - 256 IGMP Snooping Fast Leave - Yes MLD Snooping - Yes MLD Snooping Groups - Yes MLD Snooping Fast Leave - Yes 802.1Q VLAN - Yes VLAN Groups - Yes Port-based VLAN - Yes Voice VLAN - Yes Auto Surveillance VLAN - Yes Asymmetric VLAN - Yes IP Interface - Yes Max Number of IP Interface - 4 ARP - Yes ARP Entries - Yes IPv6 Neighbor Discovery (ND) - Yes ND Entries - 128 Default Route - Yes Static Route - Yes Number of Queue - Yes Class of Service (CoS) - Yes Strict Priority Queue (SPQ) - Yes Weighted Round Robin (WRR) - Yes Port-based Bandwidth Control - Yes Max Access Control List (ACL) Entries - Yes MAC Access List - Yes IP Access List - Yes IPv6 Access List - Yes SSH - Yes SSL - Yes (only support TLS 1.0) Port Security - Yes Broadcast/Multicast/Unicast Storm Control - Yes Traffic Segmentation - Yes Smart IP-MAC-Port Binding (Smart IMPB) - Yes D-Link Safeguard Engine - Yes DHCP Server Screening - Yes ARP Spoofing Prevention - Yes DoS Attack Prevention - Yes 802.1X - Yes Port based 802.1X Authentication - Yes Authentication for Management Access - Yes RADIUS - Yes Trusted Host - Yes Cable Diagnostics - Yes Simple Network Time Protocol (SNTP) - Yes Web-based GUI - Yes Telnet Server - Yes SNMP - Yes SNMP Trap - Yes TFTP Client - Yes System Log - Yes LLDP - Yes RMONv1 - Yes LLDP-MED - Yes D-Link Discover Protocol (DDP) - Yes (v0.26) DHCP/BootP Client - Yes DHCP relay - Yes Dual Images - Yes Dual Configurations - Yes Debug Command - Yes Ping - Yes D-Link Network Assistant - Yes (Chrome edition) Smart Wizard - Yes
