Easily fits any Nvidia 4000 series or AMD 7000 series GPU up to 400mm
RapidRoute cable management system
Spacious interior fits up to 10x 120mm or 4x 140mm fans
25mm of cable routing depth with easy-access hinged door

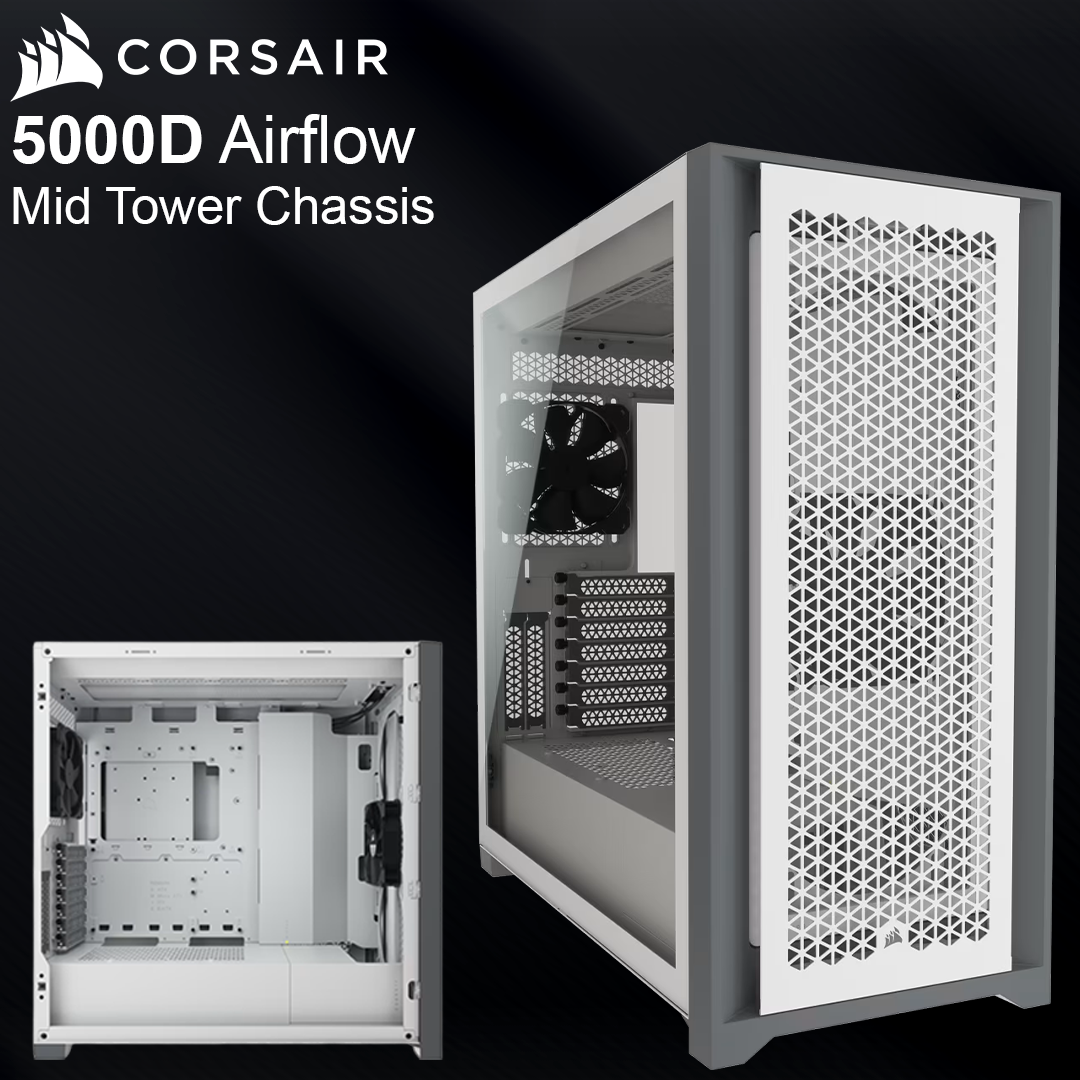

5000D AIRFLOW MID-TOWER ATX CASE
The CORSAIR 5000D AIRFLOW is a mid-tower ATX case with easy cable management for a clean build, with room for a 360mm push pull radiator, a high-airflow front panel, and two included CORSAIR AirGuide fans for concentrated airflow.

CLEAN AND COOL
An optimized steel front panel delivers massive airflow to your system for maximum cooling.

MAXIMUM COOLING POTENTIAL
A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front or side and a 360mm push/pull in the roof.

THERE'S NO REPLACEMENT FOR DISPLACEMENT
The 5000D AIRFLOW isn’t your run-of-the-mill, standard mid-tower ATX case. Its brilliantly engineered interior offers incredible expansion capability for liquid cooling.

POWERFUL DIRECTED AIRFLOW
Equipped with two CORSAIR AirGuide 120mm fans featuring anti-vortex vanes to concentrate airflow and enhance cooling.

Take command of your cooling
A PWM fan repeater controls the included fans, with connections for up to six in total. Reduce fan speed when you want to keep your system quiet, or increase when you want to push its performance, all from a single 4-pin PWM header on your motherboard.

EXTREME COOLING
Maximum Cooling Potential: A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front and a 360mm push/pull in the roof.

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.1 Type-C Port, 2x USB 3.0 port, and a combination audio/microphone jack.

VERTICAL GPU MOUNT READY
With included vertical PCIe slots and a screw mount for a CORSAIR PCI-Express 3.0 extension cable (sold separately), you can show off your GPU and keep it secure at the same time.

Case Height: 520
Case Length: 520
Case Width: 245
Case Form Factor: MID TOWER
Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Weight: 15.63
Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm
Maximum GPU Length: 420mm
Maximum CPU Cooler Height: 170mm
Maximum PSU Length: 250mm
Compatible Liquid Coolers: H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i
Case Size: Mid-Tower
Case Material: Steel, Tempered Glass, Plastic
Case Dimensions: 520mm x 245mm x 520mm
Case Power Supply: ATX
Case Expansion Slots: 7 horizontal + 2 vertical
Case Drive Bays: (x2) 3.5in (x4) 2.5in
Case Front IO: (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Case Window: Tempered Glass
Internal 3.5" Drive Bays: 2
Internal 2.5" Drive Bays: 4
Radiator Support - Front: 360mm, 280mm, 240mm
Radiator Support - Side: 360mm, 280mm, 240mm
Radiator Support - Rear: 120mm
Fan Support - Top: 3x 120mm; 2x 140mm
Fan Support - Front: 3x 120mm; 2x 140mm
Fan Support - Side: 3x 120mm; 2x 140mm
Fan Support - Rear: 1x 120mm
Reverse Connector Motherboard Support: No
Cable Routing Space: 25mm
RapidRoute Included: Yes
Vertical Mount Support: Supported (Riser Card Sold Separately)
