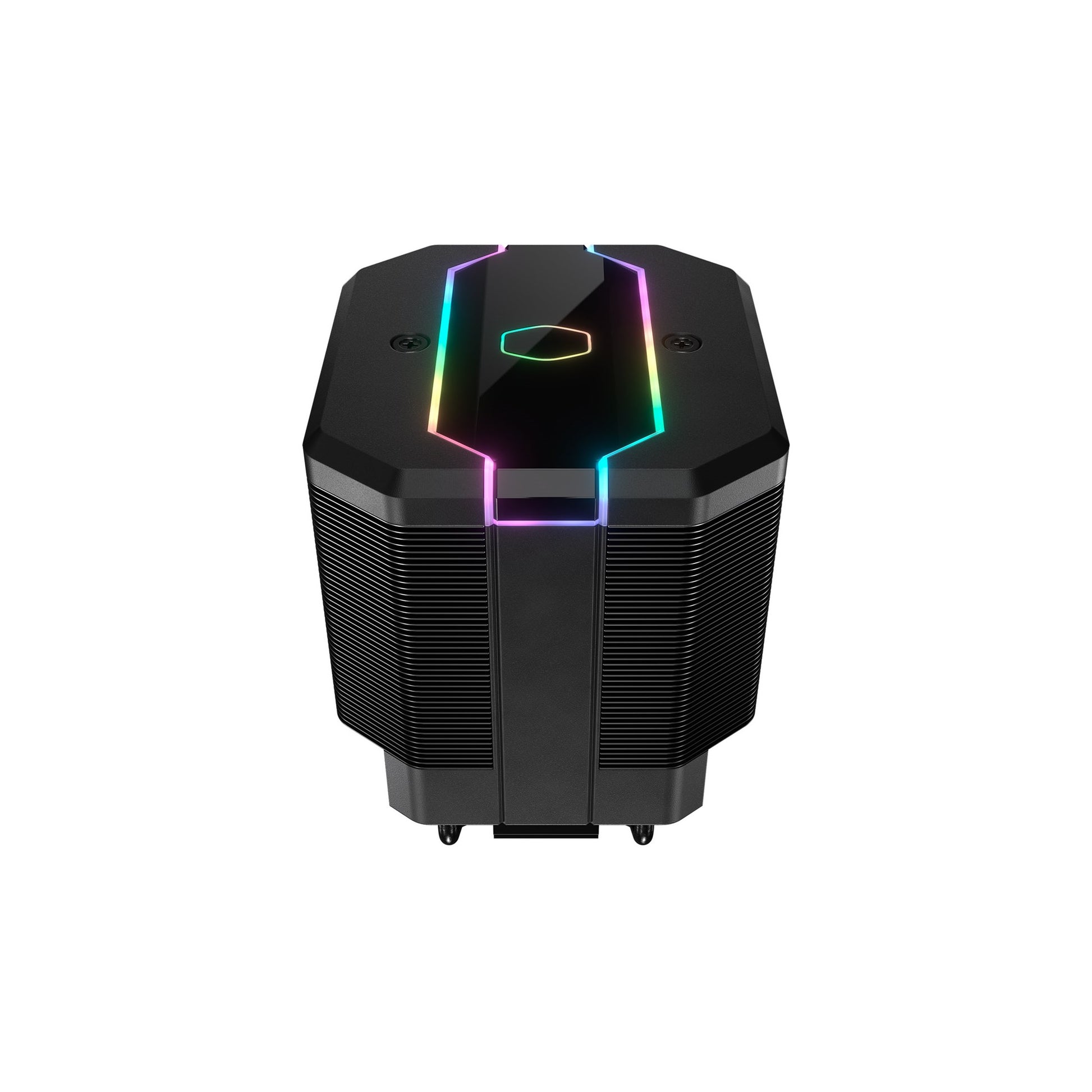

MASTERAIR MA620M
Dual Tower Heatsink with a uniform 6 pipe
Lighting Badge
Easy Mounting System
The new SF120R Fan
Addressable RGB LED Controller

DUAL TOWER HEATSINK
A combination of 2 sets of heatsink allows bigger and more spread out surface area. The black paint enhances radiation cooling performance

6 HEATPIPE ARRAY
Enhanced thermal conductivity and uniform layout distributes heat over more evenly across heatsinks

EASY MOUNTING SYSTEM
Exclusive All-In-One mounting design for easy installation

THE NEW SF120R FAN
with silent driver IC and a wide range of speed settings, it can be used for silent operation or fine-tuned for maximum cooling performance

ADDRESSABLE RGB LED CONTROLLER
The wired Addressable RGB LED Controller allows for customizable colors and effects with just the touch of a button. software

LIGHTING BADGE
The Cooler Master hexagon logo and embedded Addressable RGB lighting strip provides unique perspective light effect

DIMENSIONS (L X W X H)
135 x 125 x 165 mm / 5.3 x 4.9 x 6.5 inch

CPU SOCKET
LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

HEAT SINK MATERIAL
6 Heat Pipes, Aluminum Fins

FAN DIMENSIONS (L X W X H)
120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch

FAN QUANTITY
1 PCS

FAN SPEED
650-2000 RPM (PWM) ± 10%

FAN AIRFLOW
57.3 CFM (Max)

FAN AIR PRESSURE
2.0 mmH2O (Max)

FAN MTTF
160,000 Hours

FAN NOISE LEVEL
8 - 30 dBA

FAN POWER CONNECTOR
4-Pin (PWM)

FAN RATED VOLTAGE
12VDC

FAN RATED CURRENT
0.16A

FAN SAFETY CURRENT
0.37A

FAN POWER CONSUMPTION
1.92W

SERIES
MasterAir

COOLER TYPE
Air Cooler

HEATPIPES
6
