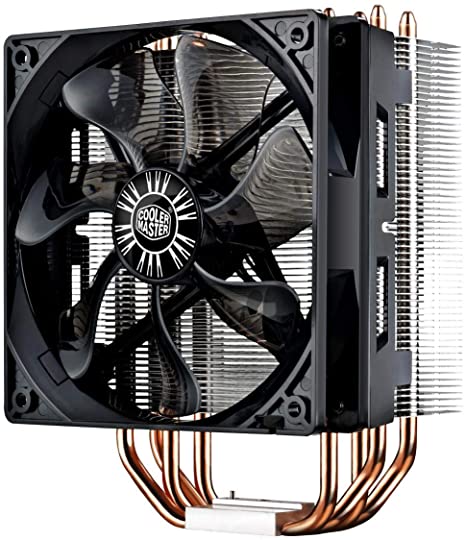

HYPER 212 EVO
Well-balanced cooling performance provides fin optimizations with perfect balance between high and low speed operations.

4 Direct Contact heat pipes with the patented CDC™ (Continuous Direct Contact) technology - creating a perfect, sleek surface for heat conduction.

Wide-range PWM fan with unique wave-shaped blade design for excellent airflow.

Versatile all-in-one mounting solution supporting the latest Intel® LGA 1366 / 1155 / 1151 / 1150 and AMD FM2 / FM1 / AM3+.

CPU SOCKET - LGA2066, LGA2011-V3, LGA2011, LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
DIMENSIONS (L X W X H) - 120 X 80 X 159 MM / 4.7 X 3.1 X 6.3 INCH
HEAT SINK DIMENSIONS (L X W X H) - 116 X 51 X 159 MM / 4.6 X 2.0 X 6.3 INCH
HEAT SINK MATERIAL - ALUMINUM FINS, 4 DIRECT CONTACT HEAT PIPES
HEAT SINK WEIGHT - 465G / 1.03LB
HEAT PIPE DIMENSIONS - Ø6MM
FAN DIMENSIONS (L X W X H) - 120 X 120 X 25 MM / 4.7 X 4.7 X 1 INCH
FAN SPEED - 600-2000 RPM (PWM) ± 10%, 600-1600 RPM (PWM) ± 10% (EU VERSION)
FAN AIRFLOW - 24.9 - 82.9 CFM ± 10%, 24.9 – 66.3 CFM ± 10% (EU VERSION)
FAN AIR PRESSURE - 0.3 - 2.7 MMH2O ± 10%, 0.3 - 1.7 MMH2O ± 10% (EU VERSION)
FAN LIFE EXPECTANCY - 40,000 HOURS
FAN NOISE LEVEL - 9 - 36 DBA, 9 - 31 DBA (EU VERSION)
FAN BEARING TYPE - LONG LIFE SLEEVE BEARING
CONNECTOR - 4-PIN
FAN RATED VOLTAGE - 12VDC
FAN RATED CURRENT - 0.22A, 0.19A (EU VERSION)
FAN POWER CONSUMPTION - 2.64W, 2.28W (EU VERSION)
FAN WEIGHT - 104G / 0.23LB
COOLER TYPE - AIR COOLER
SERIES - HYPER
HEATPIPES - 4
