Aura Sync : Advanced customization with addressable RGB LEDs and Aura Sync compatibility

OLED Power Display : Real-time power draw monitoring with OLED Power Display

ROG Thermal Solution : 0dB cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design

80 PLUS Platinum : Built with low-ESR capacitors and other premium components

Sleeved Cables : For easy building and superior aesthetics

OLED POWER DISPLAY

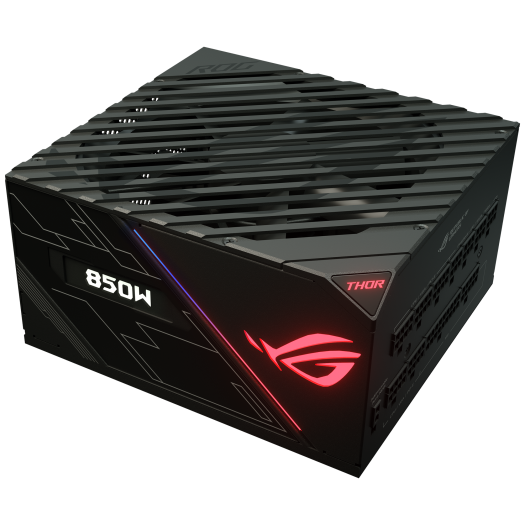

The ROG Thor 850W Platinum is the first PC PSU in the world to feature an integrated OLED panel, offering a real-time display of power draw. Now you can see at a glance how much juice your rig is using.

WING-BLADE FAN
We’ve equipped the ROG Thor 850W Platinum with a 135mm patented Wing-blade fan to maximize component lifespan. IP5X dust-resistance keeps it spinning freely and 0dB technology utilizes thermal sensors to allow the fan to switch off completely at lower wattages — enabling totally silent operation.

ROG HEATSINK
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the ROG Thor 850W Platinum. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise never exceeds 20dB, allowing ROG Thor to achieve LAMBDA A+ certification.

80 PLUS PLATINUM CERTIFICATION
The ROG Thor 850W Platinum utilizes top-end Japanese capacitors to ensure efficient operation. This has earned an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% at 50% load. The increased efficiency produces less heat, reducing fan noise and increasing reliability.

SLEEVED CABLES
We know you'll want to get building right away, so we've included high-quality sleeved and standard cables. The sleeved cables include one 24-pin, two 6+2-pin PCI-e cables and two 8-pin CPU cables. We've also included an RGB connector that plugs into the addressable RGB header on your ASUS motherboard.

Dimensions
16 x 15 x 8.6 Centimeter

Efficiency
80Plus Platinum (At 20%/50%/100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is 90%/92%/89%.)

Protection Features
OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials
ROHS

AC Input Range
100-240Vac

RGB Connector
Aura Sync

DC Output Voltage
+3.3V +5V +12V -12V +5Vsb

Maximum Load
20A 20A 71A 0.3A 3A

Total Output
850W

Connectors
MB 24/20-pin*1 CPU 8/4-pin*2 PCIE 8/6-pin*4 SATA *12 Peripheral 4-pin*5 Floppy*1

AURA SYNC
ARGB

0dB Fan Button
Yes
