The RB2011Ui is a multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

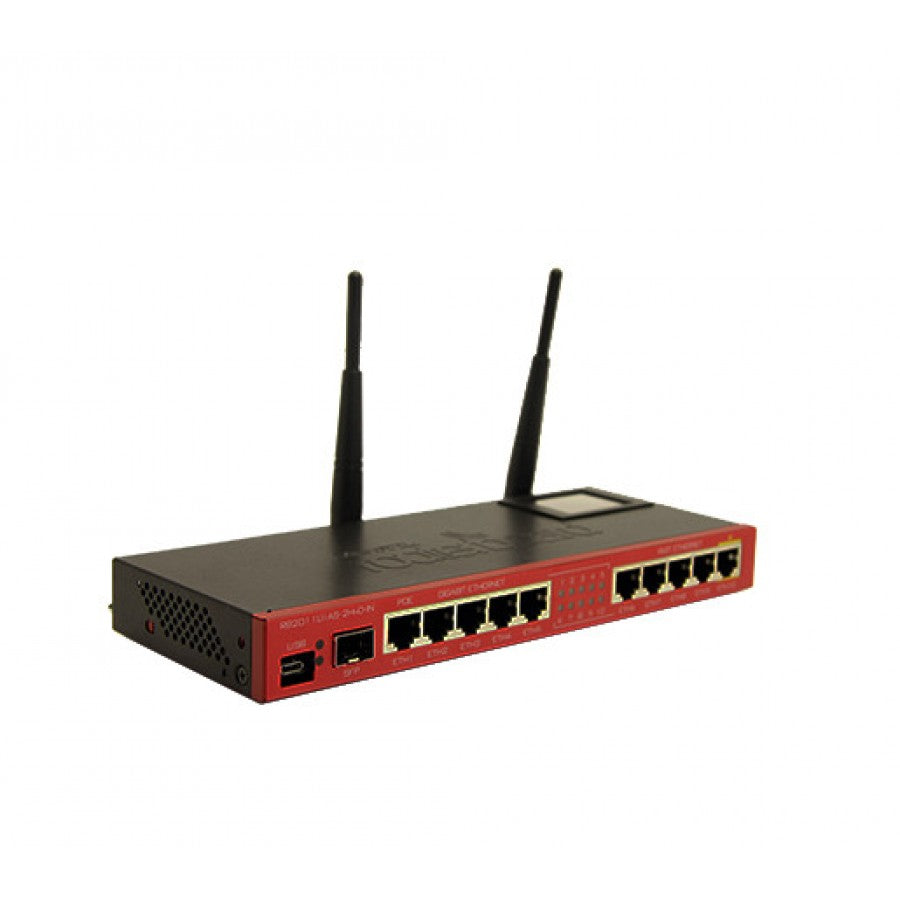

RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

RouterBOARD 2011UAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.

Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable

Product code
RB2011UiAS-2HnD-IN

Architecture
MIPSBE

CPU
AR9344

CPU core count
1

CPU nominal frequency
600 MHz

Dimensions
214mm x 86mm for PCB

RouterOS license
5

Operating System
RouterOS

Size of RAM
128 MB

Storage size
128 MB

Storage type
NAND

MTBF
Approximately 200'000 hours at 25C

Tested ambient temperature
-40°C to 60°C

Wireless capabilities
Details

Wireless 2.4 GHz Max data rate
300 Mbit/s

Wireless 2.4 GHz number of chains
2

Wireless 2.4 GHz standards
802.11b/g/n

Antenna gain dBi for 2.4 GHz
4

Wireless 2.4 GHz chip model
AR9344

Wireless 2.4 GHz generation
Wi-Fi 4

Ethernet
Details
10/100 Ethernet ports
5

10/100/1000 Ethernet ports
5

Fiber
Details
SFP DDMI
Yes

SFP ports
1

Peripherals
Details
Serial port
RJ45

Number of USB ports
1

USB Power Reset
Yes

USB slot type
USB type A

Max USB current (A)
1

Powering
Details
Number of DC inputs
2 (DC jack, PoE-IN)

DC jack input Voltage
8-30 V

Max power consumption
11 W

FAN count
Passive

PoE in
Passive PoE

PoE in input Voltage
8-30 V

PoE-out
Details
PoE-out ports
Ether10

PoE out
Passive PoE

Max out per port output (input < 30 V)
510 mA

Max total out (A)
510 mA
