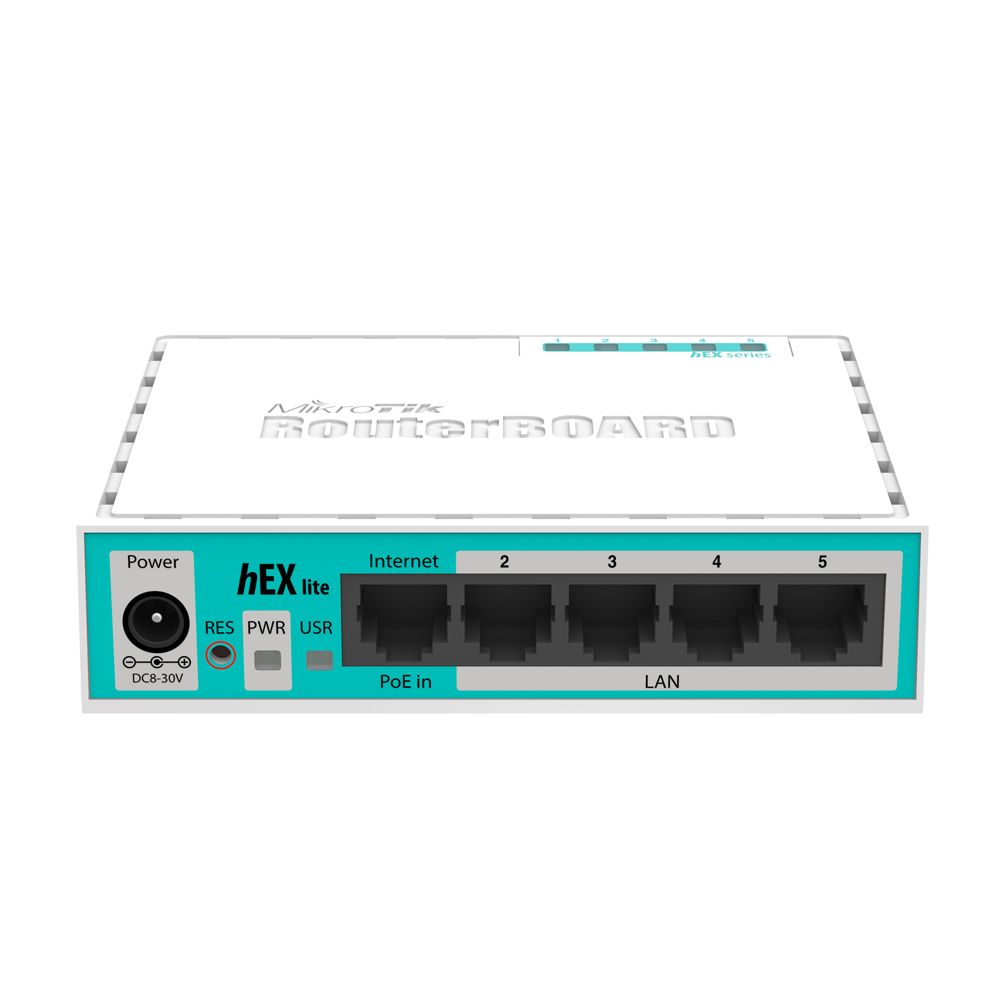

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specifications
Details
Product code
RB750Gr3

Architecture
MMIPS

CPU
MT7621A

CPU core count
2

CPU nominal frequency
880 MHz

CPU Threads count
4

Dimensions
113x89x28mm

RouterOS license
4

Operating System
RouterOS

Size of RAM
256 MB

Storage size
16 MB

Storage type
FLASH

MTBF
Approximately 100'000 hours at 25C

Tested ambient temperature
-40°C to 60°C

IPsec hardware acceleration
Yes

Powering
Details
Number of DC inputs
2 (DC jack, PoE-IN)

DC jack input Voltage
8-30 V

Max power consumption
10 W

Max power consumption without attachments
5 W

FAN count
Passive

PoE in
Passive PoE

PoE in input Voltage
8-30 V

Ethernet
Details
10/100/1000 Ethernet ports
5

Peripherals
Details
Memory card type
microSD

Memory Cards
1

Number of USB ports
1

USB Power Reset
Yes

USB slot type
USB type A

Max USB current (A)
1

Other
Details
PCB temperature monitor
Yes

Voltage Monitor
Yes

Mode button
Yes
