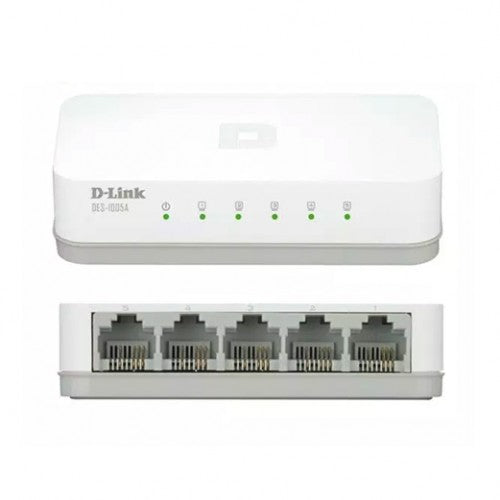

5-Port Fast Ethernet Desktop Switch In Plastic Casing
-Blazing Fast
-Plug and Play
-Compact Design

High-Speed Networking
• Five 10/100 Mbps Fast Ethernet ports
• Full/half-duplex for Ethernet/Fast Ethernet speeds

Reliability
• IEEE 802.3x flow control
• Store-and-forward switching scheme
• RoHS compliant

Easy Setup
• Plug-and-play installation
• Auto MDI/MDIX crossover for all ports

D-Link Green Technology
• IEEE 802.3az Energy Efficient Ethernet
• Port standby
• Cable length detection
• Link status detection

Stylish Design
• Compact lightweight chassis
• Ports located conveniently at the rear
• Noise-free operation

The DES-1005A 5-Port 10/100 Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The DES-1005A is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the DES-1005A to multiple computers to share files and folders, or connect it to a router to share an Internet connection.

Effortless High Speed Networking
The DES-1005A features easy access auto sensing 10/100 Mbps Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, to get you the maximum speed possible for each device connected to your network, for faster browsing, video streaming, and online gaming. The DES-1005A also supports Auto MDI/MDIX Crossover, allowing you to connect each port directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Reliable Plug and Play Installation
The DES-1005A is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, so right away you’re easily able to connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices

Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3az EEE power saving

Switching Fabric
1 Gbps switching fabric

Topology
Star

Protocol
CSMA/CD

Data Transfer Rates
Ethernet
10 Mbps (half duplex)
20 Mbps (full duplex)

Fast Ethernet
100 Mbps (half duplex)
200 Mbps (full duplex)

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

LED Indicators
Per port: Link/Activity
Per device: Power

Transmission Method
Store-and-forward

MAC Address Table
2K entries per device

MAC Address Learning
Automatic update

Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

RAM Buffer
48 KB per device

Dimensions
87 x 47.85 x 21.7mm (3.42 x 1.88 x 0.85 inches)

DC Input
External 5V/0.55A power adapter

Power Consumption
Power On (Standby):
DC input: 0.1 watts
AC input: 0.69 watts

Maximum:
DC input: 0.9 watts
AC input: 1.6 watts

Heat Dissipation
Power On (Standby)
AC input: 2.355 BTU/h

Maximum
AC input: 5.461 BTU/h

Temperature
Operating: 0 to 40 ˚C (32 to 104 ˚F)
Storage: -10 to 70 ˚C (14 to 158 ˚F)
