High-Speed Wi-Fi
AC750 dual-band is ideal for HD video streaming, high-speed downloading.

Far-Reaching Coverage
4× antennas deliver far-reaching Wi-Fi and reliable connections.

Multi
Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.

Parental Controls
Manages when and how connected devices can access the internet.

Guest Network
Provides separate access for guests while securing the host network.

Smooth HD Streaming
Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.

IPv6 Supported
Compatible with the IPv6 (the latest Internet Protocol version 6).

Compact and Mountable
Designed to conserve space and complement any decor.

WIRELESS
Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AC750
5 GHz: 433 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range - 2 Bedroom Houses

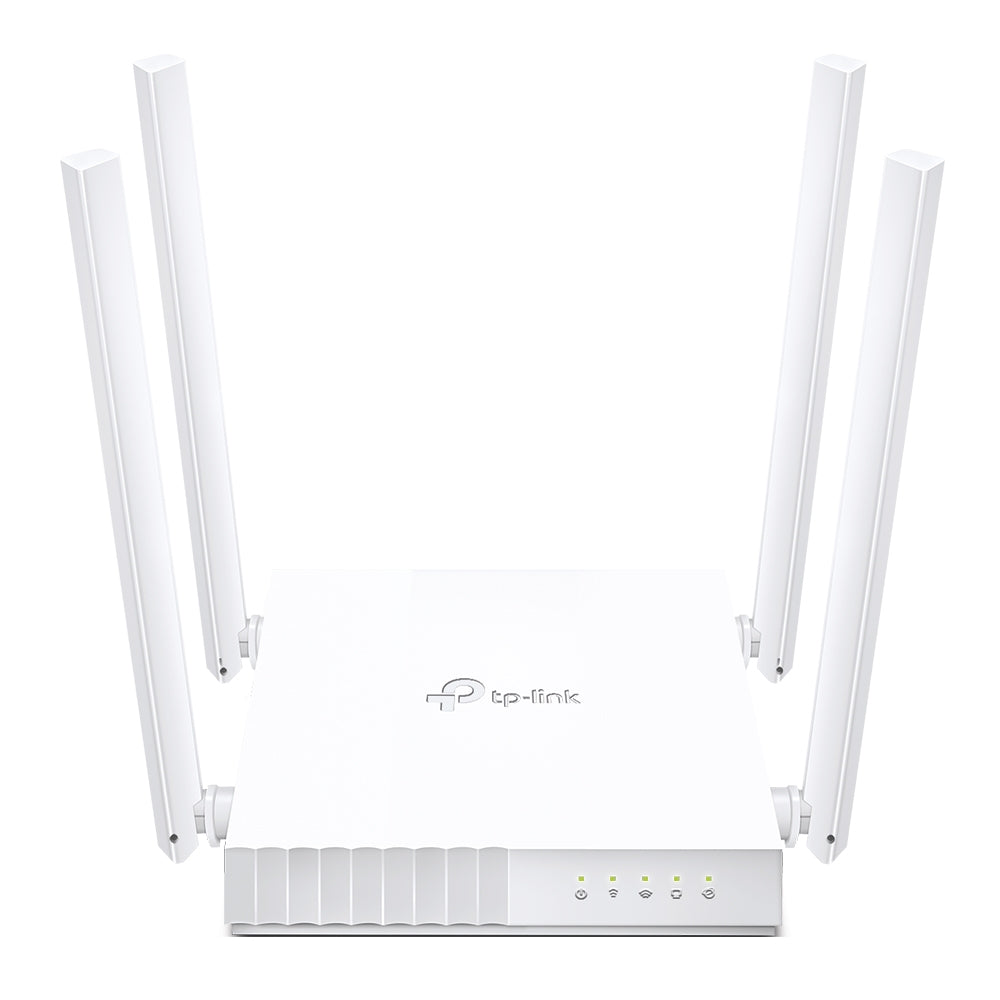

4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity - Medium
Dual-Band
Allocate devices to different bands for optimal performance

Working Modes -
Router Mode
Access Point Mode
Range Extender Mode

HARDWARE
Processor - Single-Core CPU
Ethernet Ports -
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports

Buttons - WPS/Reset Button
Power - 9 V ⎓ 0.6 A

SECURITY
WiFi Encryption -
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security -
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network -
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

SOFTWARE
Protocols -
IPv4
IPv6

Parental Controls -
URL Filtering
Time Controls

WAN Types -
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - QoS by Device

NAT Forwarding -
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV -
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP -
Address Reservation
DHCP Client List
Server

DDNS -
NO-IP
DynDNS

Management -
Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) -
4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)
